Date Coder Printer

This date coder printer is suitable for all kinds of horizontal packing machine to print production date, expiry, lot number, etc. in the industry of food, drink and medicine.

Related file download

Product Description

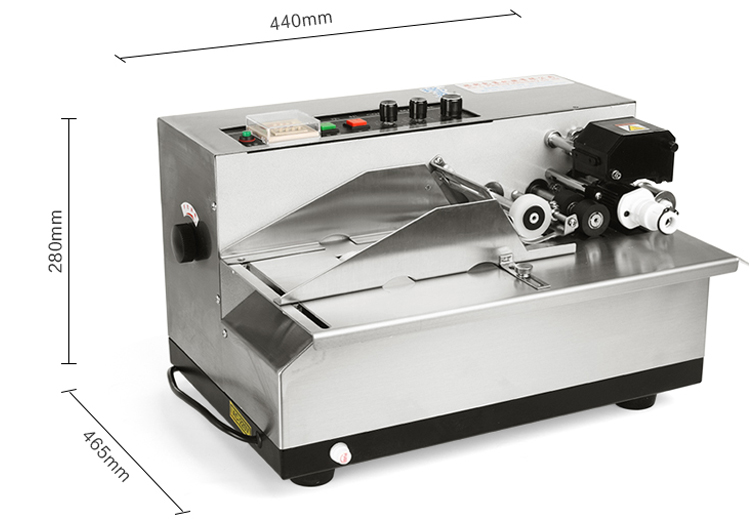

Date Coder Printer


Ⅰ. Applications Of Date Coder Printer

This date coder printer is suitable for all kinds of horizontal packing machine to print production date, expiry, lot number, etc. in the industry of food, drink and medicine.


Ⅱ. Features Of Date Coder Printer

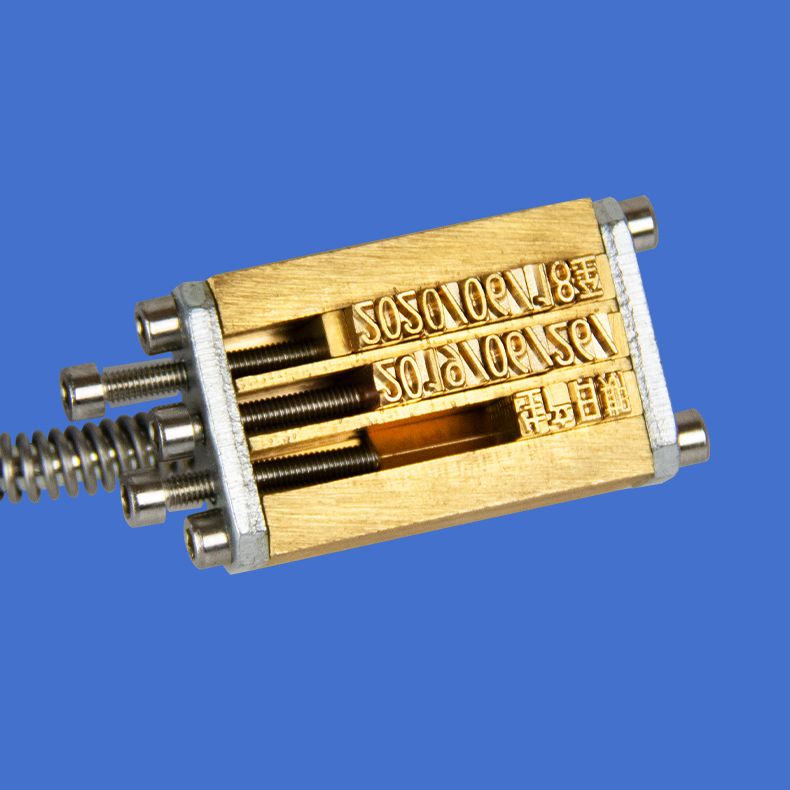

1. Removable print head, simple structure of ink roll extraction device, the characters and ink roll are easy to set and replace.

2. Utilizes running friction force of packing film to make printing head rotate.

3. Automatically trace the packing speed and the print speed synchronous with packing machine to make sure the coherence of the printing position.


Ⅲ. Technology Data Of Date Coder Printer

Model

AB-805

Driver

Friction

Voltage

220V/50Hz

Power

220W

Print speed

0-300 Times/min

Font size

2mm*3.4mm*6.8mm, 2.5mm*7.0mm*6.8mm

Consumable

Ink roll

Weight

8 kg

Dimension (L*W*H)

470mm*130mm*230mm

Remarks: Other specification can be customized.
