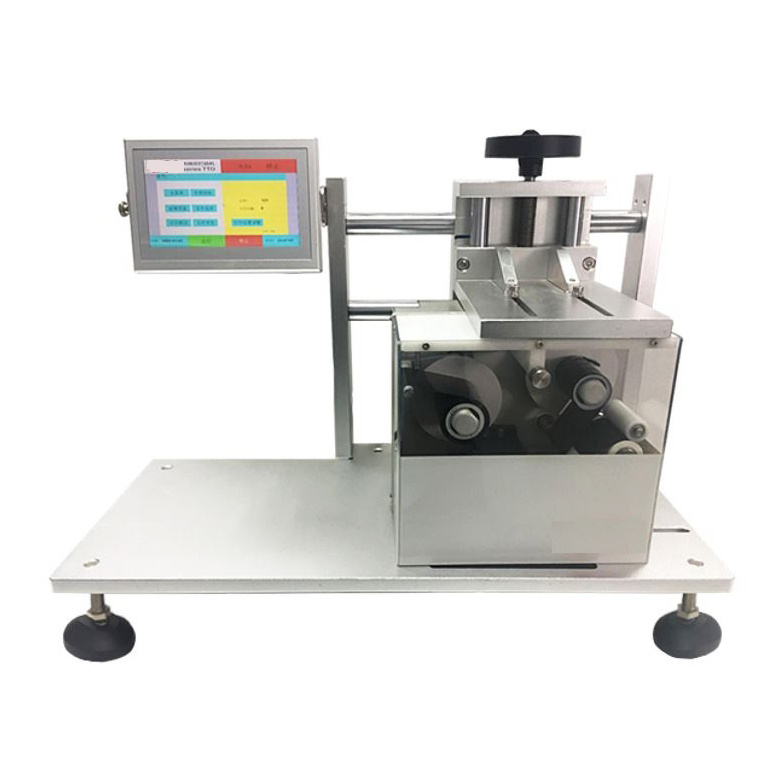

Thermal Transfer Date Printer

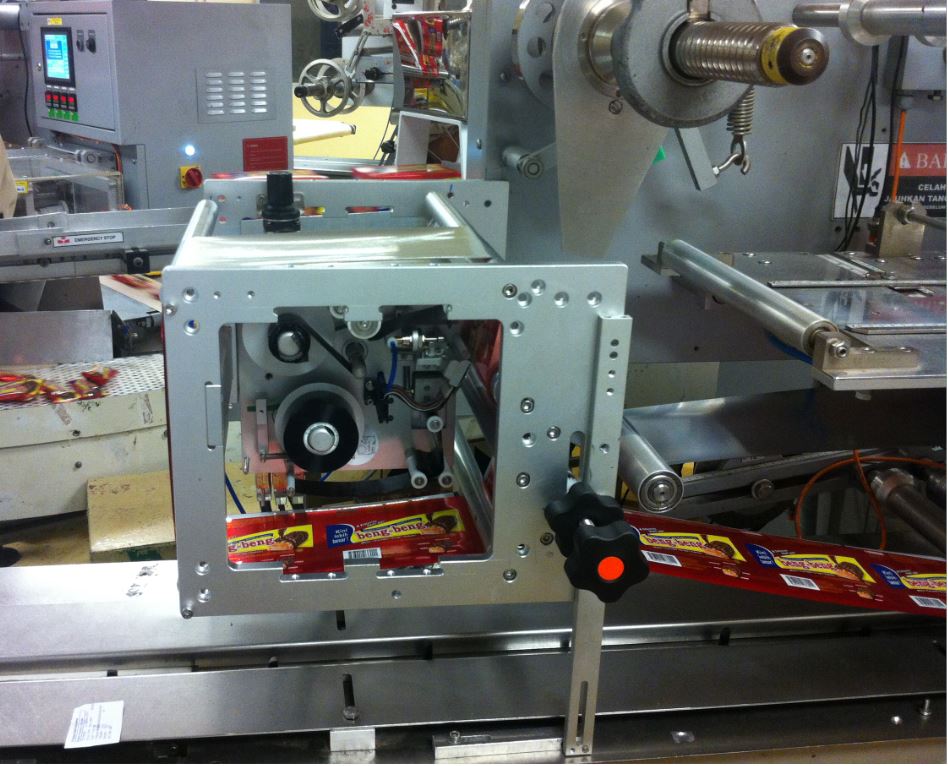

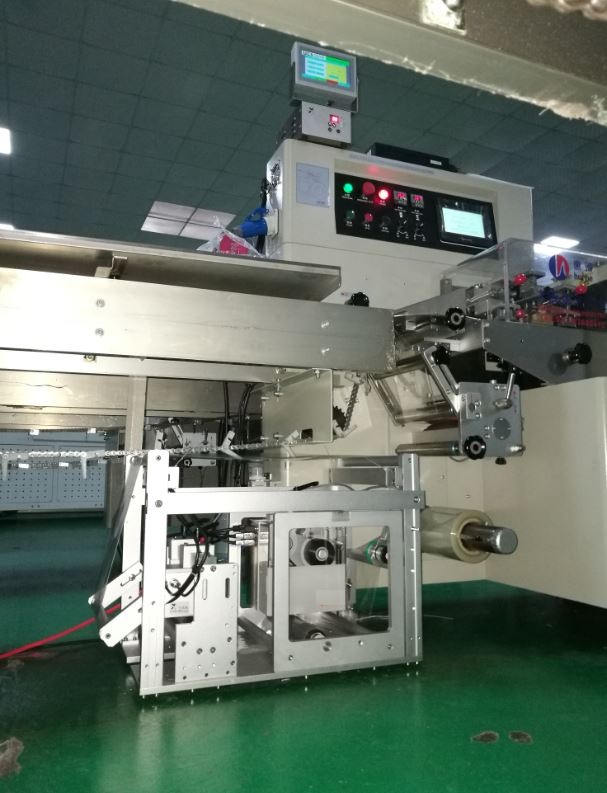

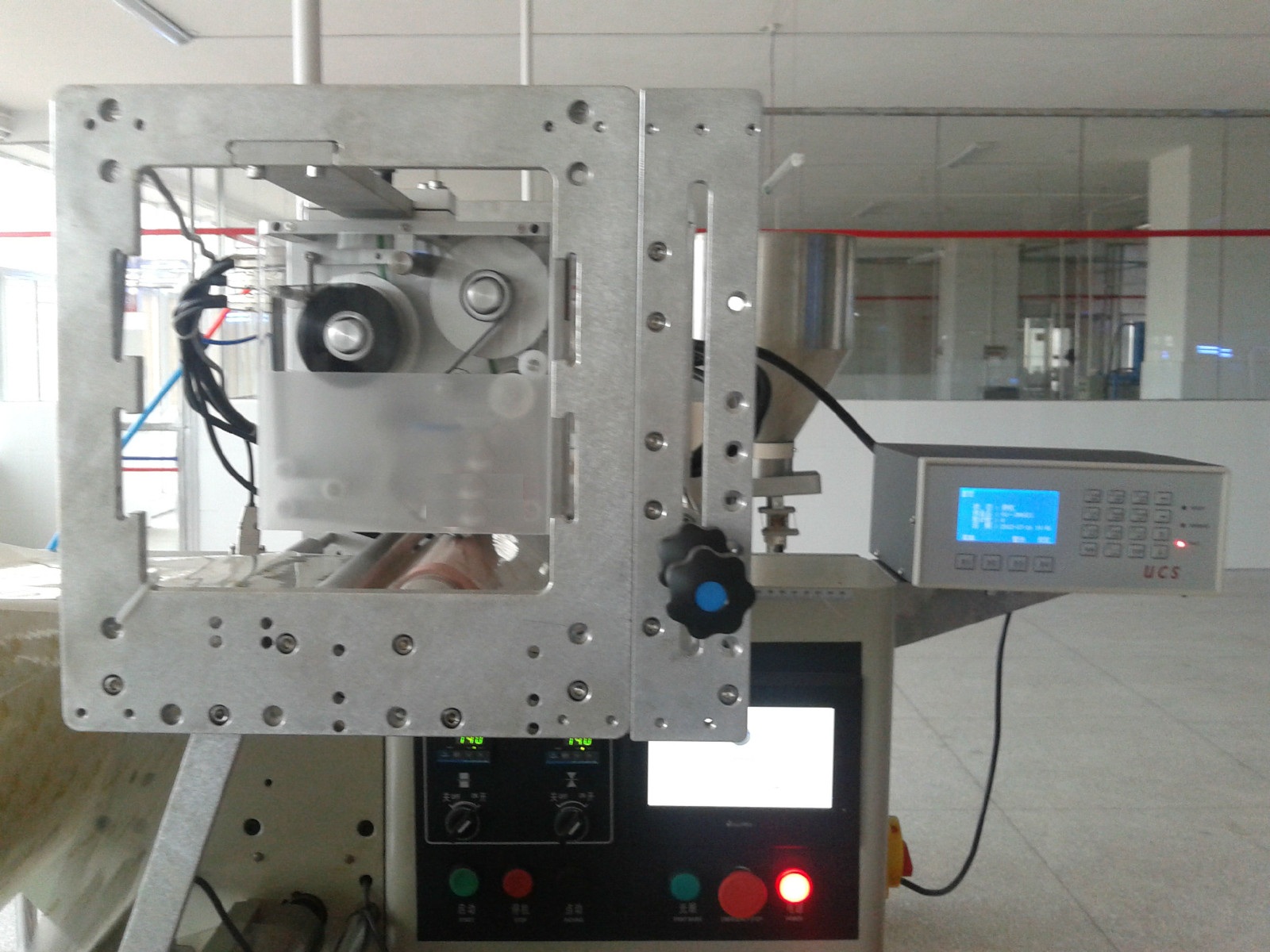

This high grade continuous thermal transfer coder, which is suitable for horizontal packing machine, rewinder, vertical packing machine and etc. Thermal Transfer Date Printer is widely used in industries such as food, printing and pharmacy.

Related file download

Product Description

Thermal Transfer Date Printer


Description Of Thermal Transfer Date Printer

This high grade continuous thermal transfer coder, which is suitable for horizontal packing machine, rewinder, vertical packing machine and etc. Thermal Transfer Date Printer is widely used in industries such as food, printing and pharmacy.


Technical Parameters Of Thermal Transfer Date Printer

Machine Specifications

Type

Continuous

Model

AB-8

Print Area

53mm x 180mm

Print Resolution

300DPI 12dots/mm

Print Speed

50-650mm/s

Ribbon Size

33mm x 450m and 33mm x 600m outside ink depending on model

Print Gap

0.5mm and adjustable

Software Interface

RS232 industrial port / USB transfer depending on model/Network Interface

Hardware Interface

Input: print trigger/Encoder

Output: Print/Warning/Fault

User Interface

Monochrome with 3.5" blue backlight LCD/Color touch screen with 2 USB port/PC Direct

Job file creation/Self Diagnostic/Warning and Error indication multiple language input

Print Body Features

Image rotation/Font Selection/Logo/Serial numbering/Customized code/Random

Dimensions(mm)

2D code/Barcode/Shift code/Real date and time/Best before date/Expiry dat

Weight

L210 x W200 x H180

Approx.6.5Kg

Power/Air Supply

100~200 VAC or 220~240 VAC

Max 6 bar compressed air(eletromegnetic actuated cylinder for non air model)

Operating Environment

Temperature:0~40 degree C / Humidity:0~90%
