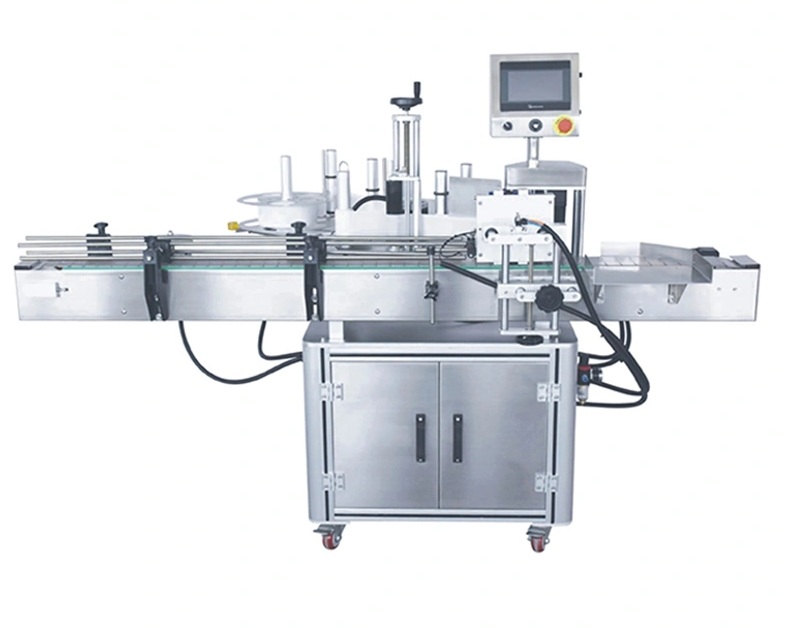

Feature and description of the machine
1. PLC control with large-scale human-machine interface, easy to read, easy to read, beautiful.
2. Multiple sets of labeling parameters memory for fast replacement of products.
3. Automatic labeling machine made with stainless steel and anodized aluminum is made of high-level, meet the GMP standard.
4. Automatic labeling machine features a bottle guide is, sub-bottle, label lost level, counting among others.
5. Labeling position, height, adjustable.
6. Conveyor belt on the production line can be connected.
Technical Parameter:
|
Voltage
|
AC110V/220V 50/60Hz
|
|
Power
|
500W
|
|
Labeling speed
|
30-150 pcs/min
|
|
Precision
|
±1mm
|
|
Label roll diameter
|
76-200mm
|
|
Bottle diameter
|
20-100 mm
|
|
Bottle height
|
30-300 mm
|
|
Label size
|
height：10-140mm，length：20-200mm
|
|
Machine size
|
L2000 x W1100 x H1350 mm
|
|
Machine weight
|
150 kg
|
|
Note：Tags need to play code, can be customized.
|
Sample view:
