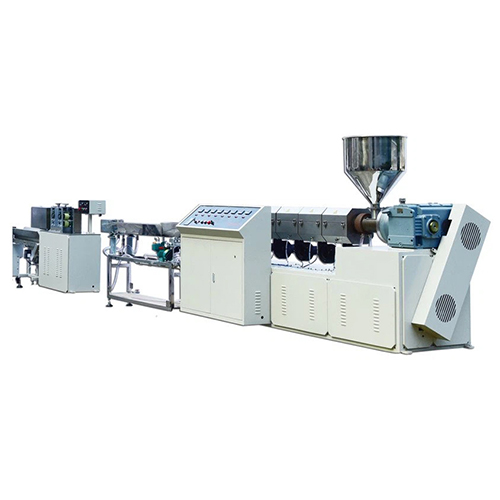

PLA ONE COLOUR DRINKING STRAW EXTRUDER

AB-65J PLA extrusion line is a tube extrusion line, composed of PLA extruder and die, size setting and water cooling unit, haul-off unit, servo motor rotary cutter unit, special design screw diameter 65mm L:D(33:1) for PLA material, also PP material can be used. High efficient & saving energy servo motor and heating system. Servo motor cut, The series machines can produce all kinds of PLA & PP drinking straw、 medical pipe, all the machine’s controls base with PLC & Touch screen control elements ergonomically adapted to permit easy operation. All production data can be transfer to center office by NCC. WIFI function, plc system can be checked and updated by internet.

Related file download

Product Description

TECHNICAL FEATURE:

1. Special designed 65mm, L/D 33:1 screw, use for PLA and PP material, 173 hard surface gear box, 30kw high efficient & saving energy servo motor.

2. Far-infrared radiant heating, high efficient & saving energy. Cooling fan can make the heating temperature stabilization.

3. Automatic feeding and drying raw material system.

4. Water bath in stainless steel can be adjusted in three planes

5. The haul-off unit can be belt or rollers, it is customizable, Fitted with double rotary cutter. Cut angle: 90°/45°, 90°/60°

6. All the machine’s controls base with PLC & Touch screen control elements ergonomically adapted to permit easy operation. All production data can be transfer to center office by NCC. WIFI function, plc system can be checked and updated by internet.

7. Conveyor device(you may select if you want)


SPECIFICATIONS :

Model

AB-65J

Feature

Material

PLA PP PE

Color 1
Straw diameter φ3.0 ~ φ12 mm
thickness 0.10 ~ 0.35 mm
Straw length 80 ~ 300 mm
Stripes Straight / Helical
Capability 400 ~ 1800 pcs/min
Extruding output range 50 ~ 70 kgs/hr

Extruder

Main Screw diameter

φ65 mm ( BM Screw)

Screw L/D 33 : 1
Main driving motor 30 Kw (Servo motor)
Vice screw diameter 0
Vice driving motor 0
Gearbox ZLY173
Automatic thermo-controller 8 sets
Heating power 15 kw(Far-infrared radiant heating)
Raw Material Drying device 1set
Automatic feeding raw material system 1set
Cooling fan motor 4sets

Water cooling tank

Forming device

1 set

Vacuum Pump motor 1.1 kw(选配choose)
Water storage tank (length)3800 mm /304 Steel stainless
Base frame material (304 Steel stainless)
Blow dry device 1 set

Take up & Cutting Unit

Take up unit

1 set

motor 0.75kW×1(VFD)
Cutting knife unit 1 set
Servo motor 1.5kW×1(Servo motor)
angle of port 90°/60°/45°
Digital counter 1 set
Blow dry device 1 set

Others

Air compressor

1.5kw(Option)

Dimension LxWxH 10.5m×1.4m×1.6 m
Machine weight 2800 kgs
