PP Straw Extrusion Machine

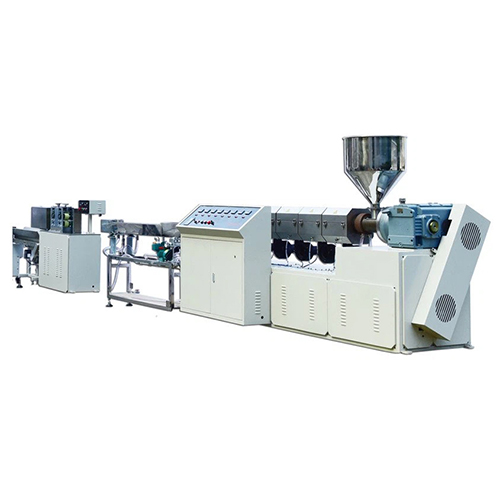

AB-65J series extruding line is the machine to produce the straight drinking straws which consists of extruding device, cooling device, cutting device and electrical control device.

Related file download

Product Description

High-speed drinking straw extrusion machine are able to produce transparent, single-color, double-color, tri-color, and multi-color straight straws, of which the processes are melting, extruding, shaping, cooling, pulling and cutting. The performance of this series is top notch with a length error within ±1mm.


Features

1.Simple structure, easy-to-operate, highly-automation, one operator can operate two lines.

2.Multi-choice for the cut-end 90°/90°、90°/45°、90°/60°、/45°/45°、60°/60°.

3.The cooling tank and hopper are made of stainless steel board, hygienic and beautiful.


Specifications

Model

AB-65J-1

AB-65J-2

AB-65J-3

Raw material

PP \PE

Colour of the drinking straws

Transparent, one colour straws

Transparent, one colour straws with one colour stripe

Transparent, one colour straws with two-colour stripe

Driving motor

11KW(50screw) 30kw(65csrew)

Assistant motor

None

0.75kw

control by frequency converter

0.75kw×2

control by frequency converter

Pulling and cutting unit

0.75kw×2

Main screw

Diameter:50mm Length/Diameter:28:1

Diameter:65 mm Length/Diameter:28:1

Assistant screw I

none

Diameter:25mm

Length :Diameter:20:1

Assistant screw II

none

Diameter:25mm

Length :Diameter:20:1

Forming&cooling unit

Vacuum soaking

3.5m or 4.5m cooling bath can be choose

Automatic temperature controller

4pieces

7pieces

10pieces

Total power

22kw(50) 20kw(50)

22kw(50) 30kw (65)

22kw(50) 30kw(65)

Actual power

10kw(50) 15kw(50)

12kw(50) 20kw(65)

14kw(50) 20kw(65)

Straw specifications

Diameter:ф2~12mm( small、middle、big mould can be selected)

Length:3~1000mm
Length tolerance:±1mm

Capacity

800~1200pcs/min (25~60kg/h)

Area

2m×8m

Weight

1.6T

1.8T

2T

Extra purchase devices

1.Vacuum cooling bath(make the straws which thickness >0.5mm)

2.Air compressor

4 or 5 color extrusion machine needs customize

Co-extrusion machine needs customize
