Paper Straws Machine

Paper straws machine is suitable for producing paper straws of various types and specifications, such as diameter 5mm; 6mm; 8mm; 10mm, etc.

Related file download

Product Description

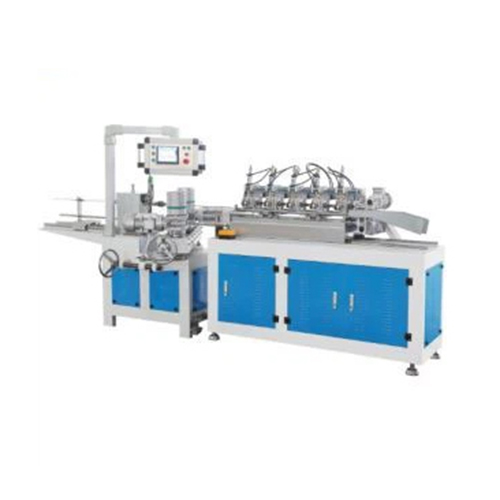

Paper Straws Machine


Description Of Paper Straws Machine

Paper straws machine is suitable for producing paper straws of various types and specifications, such as diameter 5mm; 6mm; 8mm; 10mm, etc.


Features Of Paper Straws Machine

1. Paper straws machine adopts man-machine interface, the touch screen is clear and clear, and the operation is very simple. This machine adopts PLC control, and the host is equipped with frequency converter for speed regulation.

2. Paper straws machine is managed by an encoder and driven by a servo motor.

3. Automatic and efficient, working speed is 150-220 straws per minute.

4. Use well-known brand suppliers to provide motors and electrical equipment.

5. The fuselage and main accessories are made of stainless steel to ensure product hygiene and environmental protection.


Specification Of Paper Straws Machine

Model

ZGJ-5

Paper layer

2-5 layers

Inner diameter

4-12mm

Thickness

0.3-1mm

Speed

1-30m

Cutting system

5 cutters

Operator

1-2 person

Power supply

380V,3 Phase,50Hz

Weight

1200KG

Overall dimension

8000x6000x1800mm


Electrical Parts:

No.

Name

Specification

Qty

Manufacturer

1

Cutting motor

0.55KW

1

South Anhui

2

Rolling axle motor

0.55KW

1

South Anhui

3

Paper coiling motor

1.5KW

2

South Anhui

4

Motion controller


1

WEICON

5

Touch screen


1

WEICON

6

Frequency converter

3.7KW

1

Schneider

7

Pneumatic components


Some

AirTAC

8

Electrical components


Some

Schneider

9

Bearing


Some

Harbin

10

servo motor

1KW

1

Schneider

11

lead screw

TBI2525-6

1

TBI

12

Linear slider

TRH20B

2

TBI

13

Linear slider

TRH25B

2

TBI



Machine parts:

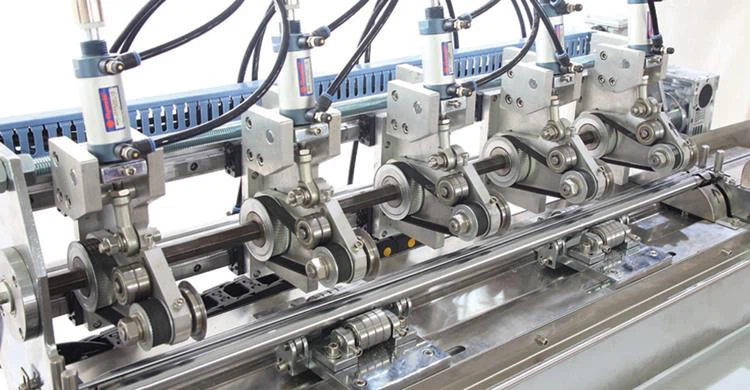

Multi cutter system

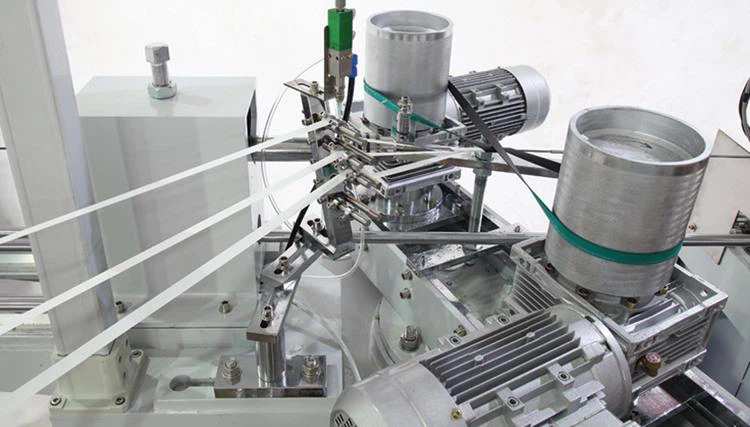

Paper coiling device

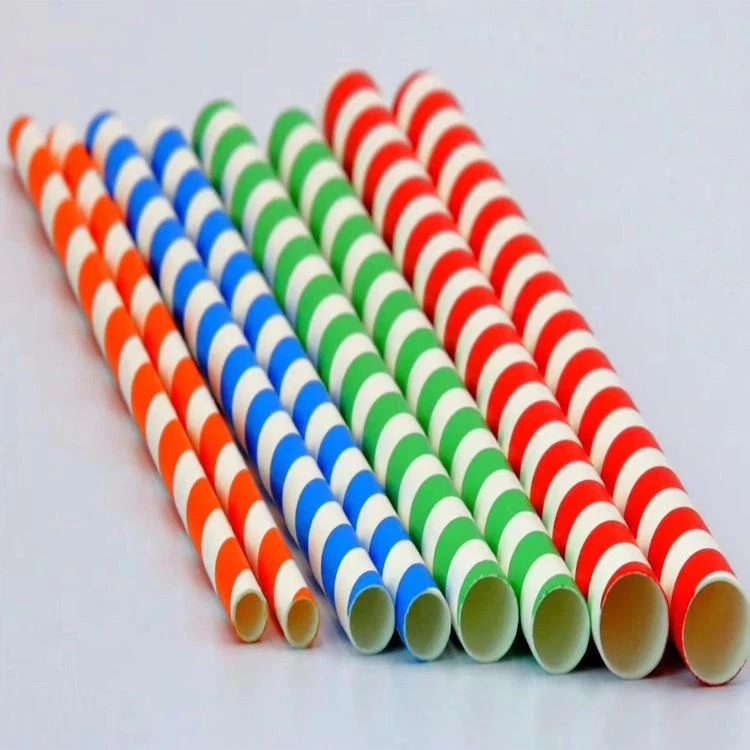

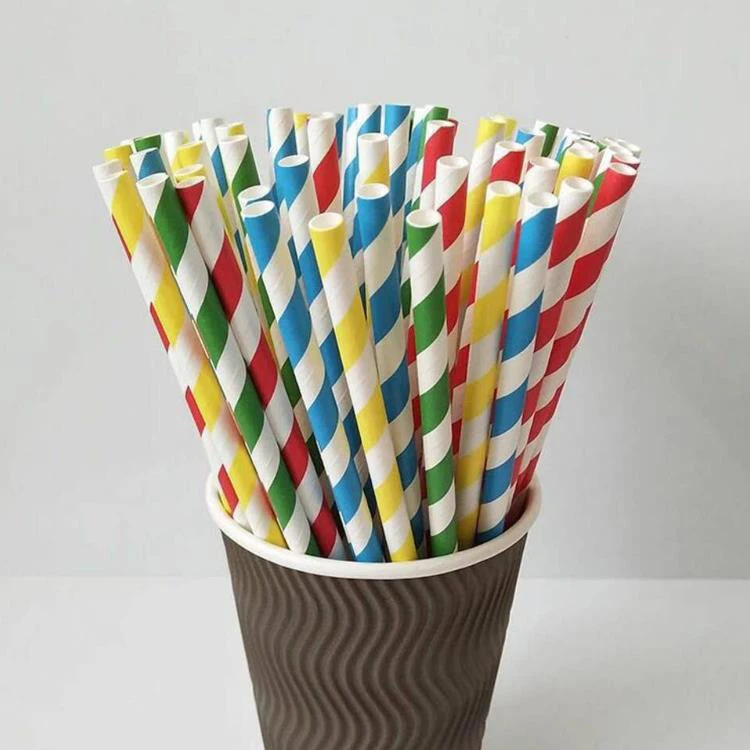

Product Samples Of Paper Straws Making Machine


FAQ

What aspects should be paid attention to in the production safety of the paper straws machine?

1. Equipment maintenance must be carried out when the switching power supply is disconnected and the equipment is completely terminated to ensure safety. And perform maintenance inspections on time; including inspections on switching power supply, lubrication, and damage.

2. When the equipment is working, it is forbidden to put your fingers close to the running parts. The use of the paper straws machine needs to ensure that the operator does not leave during the operation process to prevent emergencies.

3. When the paper straws machine is working, it is forbidden to disassemble and assemble the protective cover, which can prevent unnecessary damage to the operation of the machine and equipment.

4. The switching power supply should be equipped with over-voltage protection equipment to ensure safe power usage.

5. The paper straws machine must be a reliable grounding device.

6. Strictly implement the reminders of safety signs. Safety signs must be kept clean and cannot be covered or dropped.
