Paper Drinking Straw Making Machine

Paper drinking straw making machine meets the production needs of food grade items. Making spiral paper tubes is finished by gluing, winding, as well as cutting as required. This type of drinking straw equipment take on multi-cutting knife system, by servo monitoring, cut paper tube into tiny piece of paper drinking straws. Basic material is food grade white craft paper as well as food quality adhesive.

Related file download

Product Description

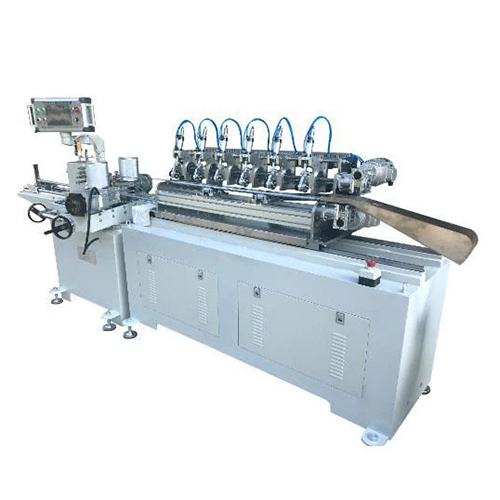

Paper Drinking Straw Making Machine


Description Of Paper Drinking Straw Making Machine

Paper drinking straw making machine meets the production needs of food grade items. Making spiral paper tubes is finished by gluing, winding, as well as cutting as required. This type of drinking straw equipment take on multi-cutting knife system, by servo monitoring, cut paper tube into tiny piece of paper drinking straws. Basic material is food grade white craft paper as well as food quality adhesive.

We are a professional manufacturer of straw machines, engaged in the production of straw machines for many years, just to bring you the best service experience.


Features Of Paper Drinking Straw Making Machine

1. Paper drinking straw making machine takes full advantage of the individual's production workshop.

2. Easy, no harsh shape, basic shape, all electric motors are released inside the device, very easy to clean external hygiene.

3. Security, the equipment is designed according to the best operation of human body, and also the transmission part has actually been ensured.

4. Steady, with the easiest transmission concept, in order to avoid the upkeep idea design, to decrease the customer maintenance frequency.

5. Our machine can offer a high speed, but to get a high quality and also secure & no quiting working, we recommend make use of a slower speed.



Specifications Of Paper Drinking Straw Making Machine

Model

ZGJ-6

Paper layer

2-5 layers

Inner diameter

4-12mm

Thickness

0.3-1mm

Speed

1-45m

Cutting system

6 cutters

Operator

1-2 person

Power supply

380V,3 Phase,50Hz

Weight

1200KG

Overall dimension

8000x6000x1800mm


Machine parts:

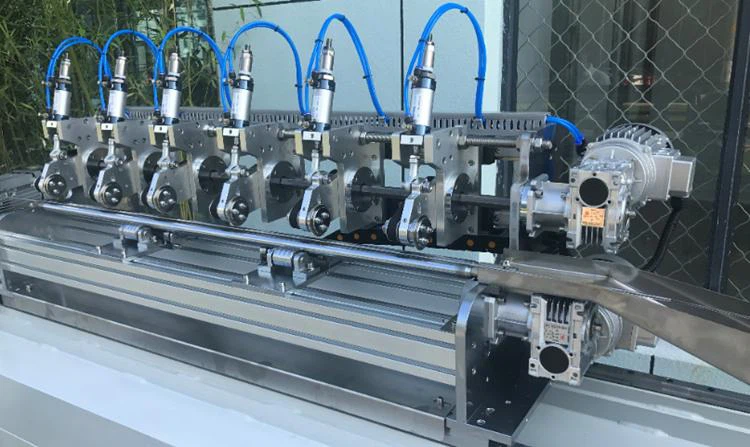

6 set cut knife

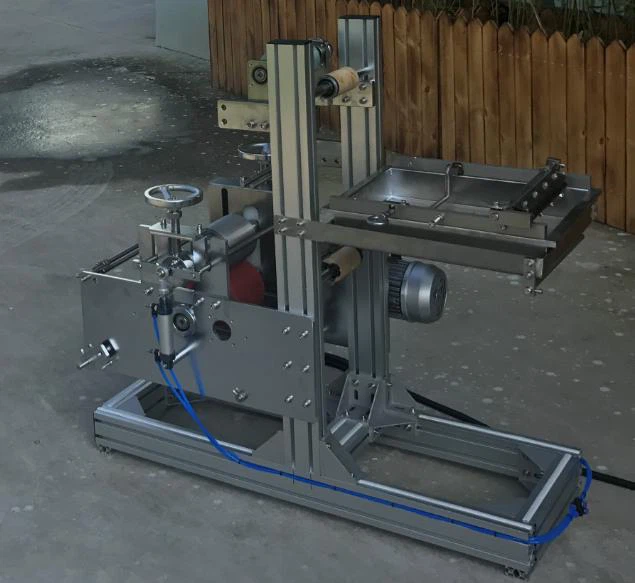

Glue device

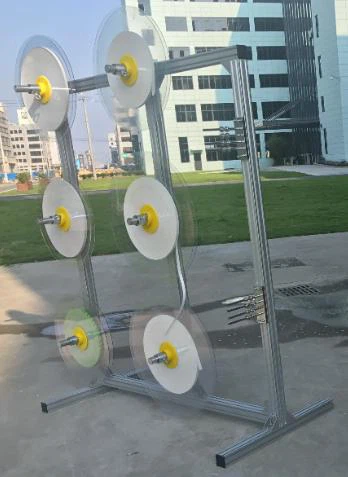

Paper frame

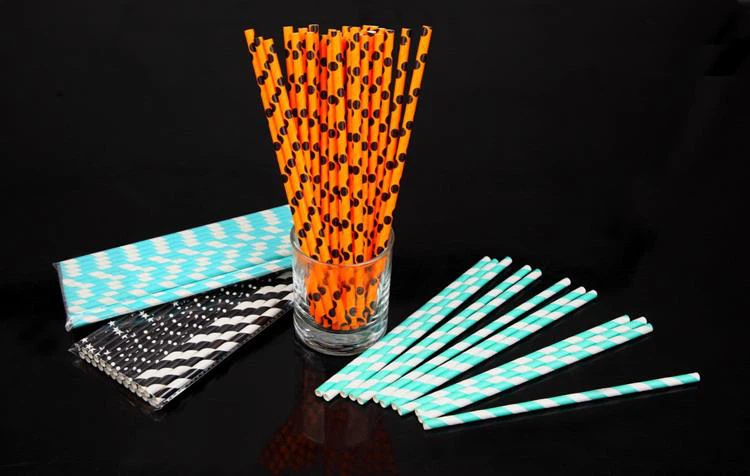

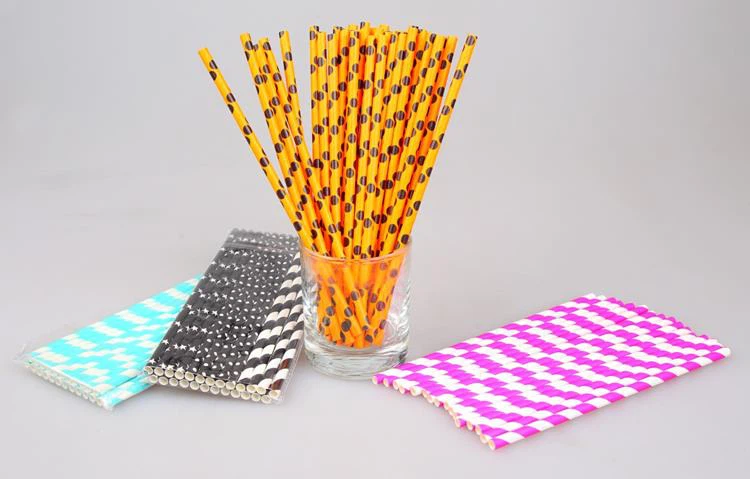

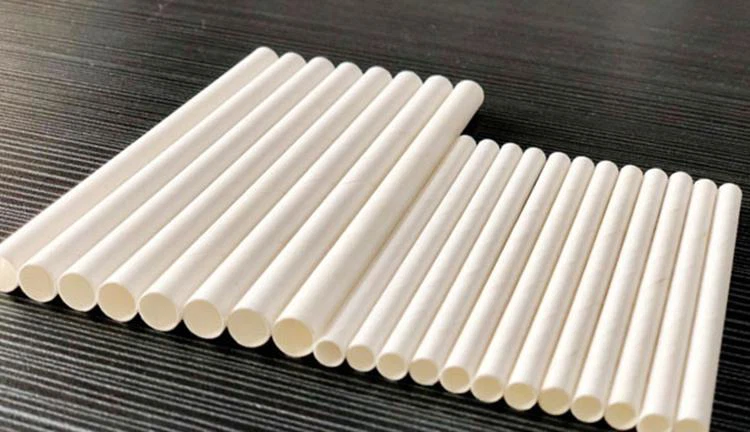

Samples Of Paper Drinking Straw Making Machine






FAQ

What are the precautions for using the straw machine?

1. Before using the straw machine, prepare the raw material paper bags, and divide the cardboard paper into the required total width paper tape.

2. Wipe lubricating oil in the bottom layer of paper: The bottom layer of paper is used as part of the rotation of the fixed core axial laser cutting head, because the fixed core shaft of the straw machine does not move and the paper tape rotates on the surface of the core shaft. In order to reduce friction, wipe the lubricating oil in the bottom paper. In order to ensure the high quality of the paper tubes produced by the straw machine, we must pay attention to the consistency of the paper tape feed rate with the drive belt speed.

3. Prepare the adhesive in advance: The adhesive must be used for the second and subsequent layers in the paper tube processing process (commonly dry organic chemical batter).

4. Wiring preparation in advance: After you connect the straw machine to the three-phase power, you should let the paper straw machine carry out the full-load operation test (observe whether the motor is selected properly), and then connect the self-induced electromotive force to the output shaft Adjust the resistor on the adjustment control board after the direction of rotation of the motor is the same, and then the engine of the straw machine can start to run normally.

5. Prepare the gas pipeline in advance: If we use air compression to cut the pipe, we need to connect the air pipe with the rated standard pressure.
