Drinking Straw Production Line

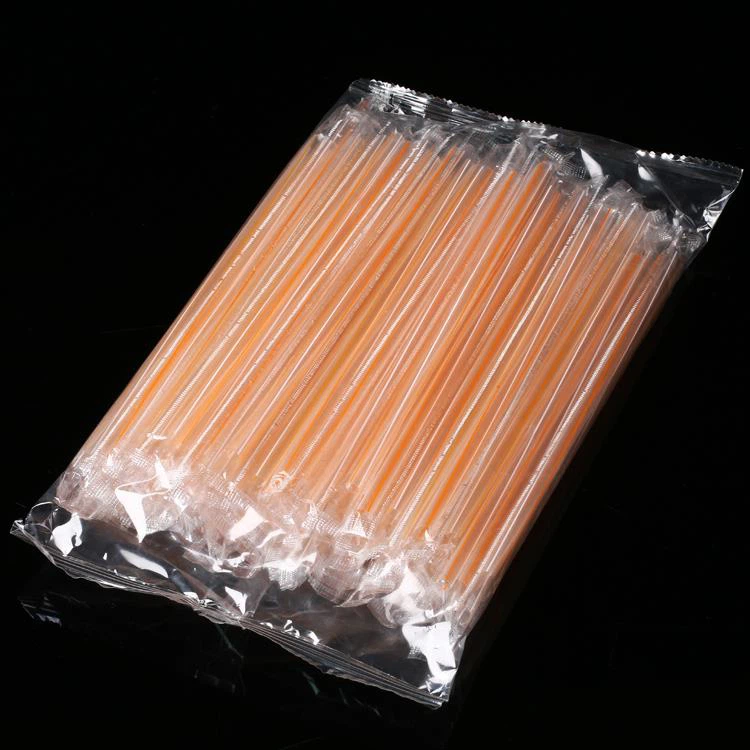

Straw production packing line is suitable for packing groups drinking straw in one bag, it can work for paper straw, plastic straw, wheat straw and PLA straw. packing quantity for standard machine is 10-150 pieces, more quantity should be customized.

Related file download

Product Description

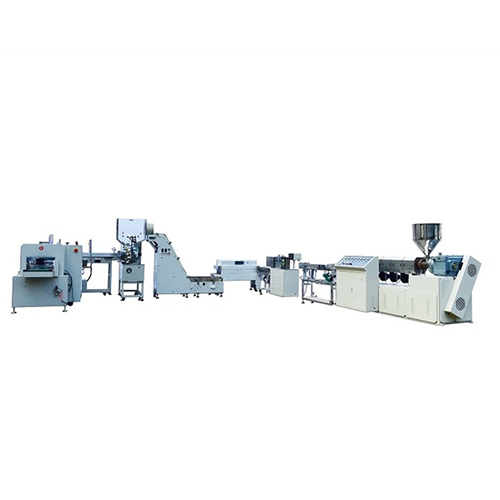

Efficient Drinking straw production line is such a serise of machines with extrusion& shaping, pulling, and packing process. The complete production line is composed of drinking Straw extruder, automatic dryer, automatic Elevator and straw packing machine-online. It is suitable for packing groups drinking straw in one bag, it can work for paper straw, plastic straw, wheat straw and PLA straw.


Features

1. The plastic straw production and packaging line adopts English man-machine interface and touch screen.

2. The paper straw online machine adopts high-precision photoelectric tracking system, and can also be used for printing film. The machine includes a precision counting system, which is more precise.

3. A variety of raw materials are applicable. BOPP, CPP, Paper with PE, PLA.

4. The gears and bearings are precision ground and hardened to ensure smooth and quiet operations.

5. The die undergoes nitrogen hardening treatment for a long service time.

6. The surface of cutting machine are made of #304 stainless steel.


Specifications

Model

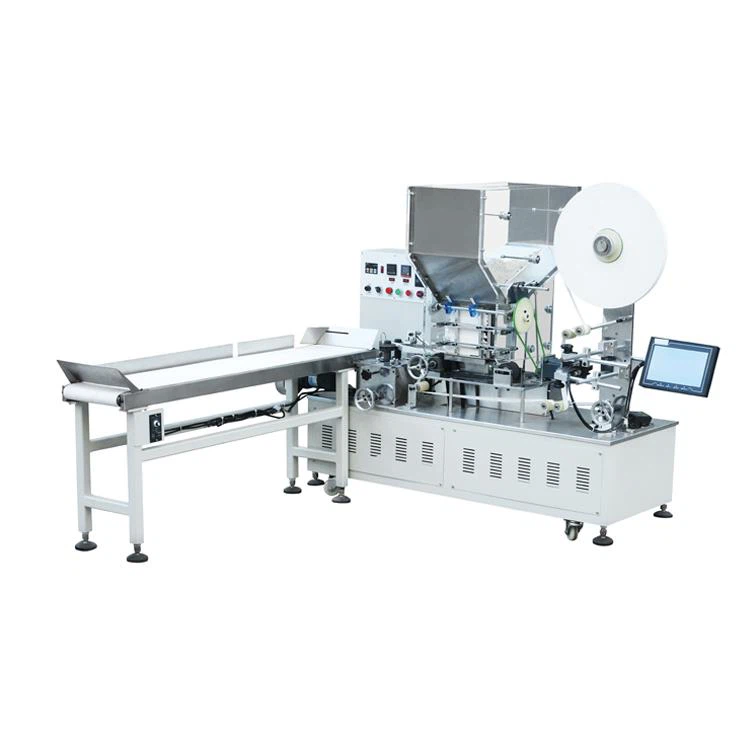

AB-031(single pack)

Drive motor

0.75kw

Speed

200~500pcs/minute

Seal

Back side sealing

Material

BOPP or paper with PE

Straw size

Diameter

4~12mm

Length

150~280mm

Other size made by order

Machine size and weight

1500 × 800×1300mm 300kg


Model

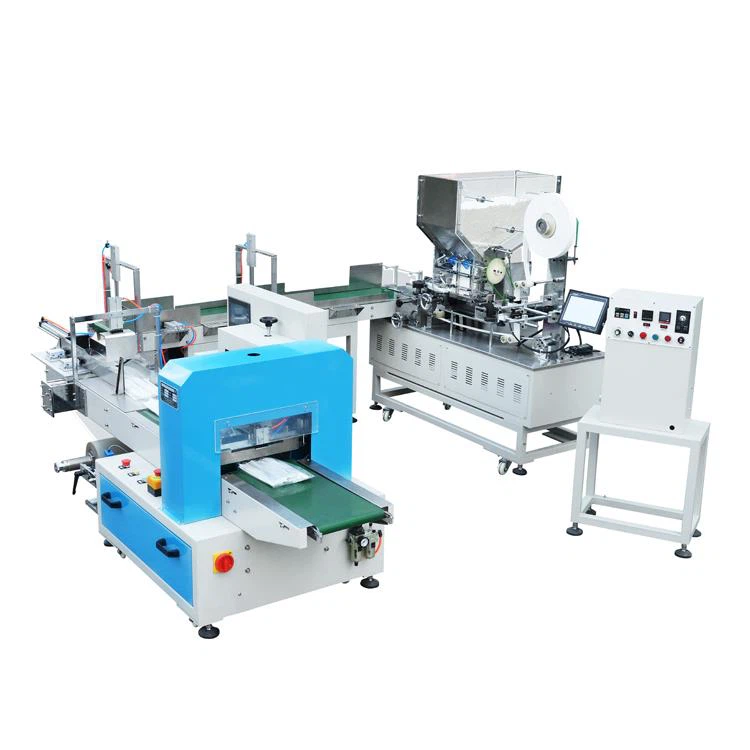

AB-600XGLJ (Bulk pack)

Max. film width

530mm

Packing Speed(Adjustable)

3-10 bag/min

Film thickness

0.03-0.06mm

Bag Length

60–600mm

Bag Width

80–250mm

Straw quantity

10-100pcs

Power Supply

220V, 50/60 Hz, 3 KW, 1 Phase

Machine Size (L x W x H)

2600 × 980 x 1250 mm

2000 x 800 x 1000mm

Machine Weight

550 Kg


Main electrical parts:

Name

Model

Quantity

Touch screen

TK6071iQ

1

PLC

FP-X0 L30R

1

Servo motor

HJ-KS73J

1

Relay

RXM2LB2BD

7

Air switch

C25/C10

1/4

Power supply

ABL2REM24015H

1

Valve


1 Set

Photoelectric switch

Z3N-TB22

1



Extrusion production line consists of extrusion main engine, cooling water tank, traction cutting device and other parts. The new extrusion production line is designed and manufactured according to the material characteristics of PLA materials. It has the advantages of full plasticization of extrusion materials, accurate temperature control, high efficiency and energy saving, etc.

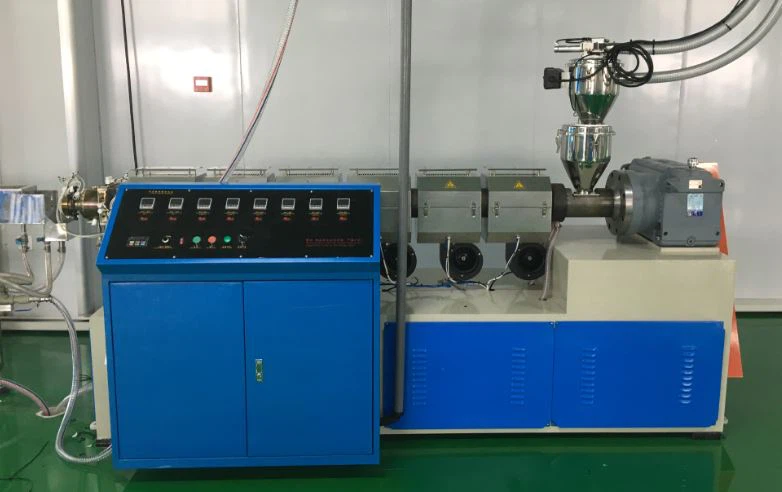

Drinking Straw Extruder


Model

AB-65

Power supply

Main Screw motor

380V,3 Phase,50Hz,22Kw,frequency inverter

Heater

15Kw(8Set,2sets for mold,Others 6 sets)

Main motor

380V,3 Phase,0.75Kw,Speed adjust by frequency inverter

Cutter motor

380V,3 Phase,0.75Kw,Speed adjust by frequency inverter

Cooling

Cooling fan motor 6 sets  Water cooling 1 set

Total Power

40Kw

Temperature controller

8Sets

Straw specification

Straw material

PLA, PBS, PP, etc.

Diameter

Φ2—Φ13mm

Length tolerance

0.1-1mm

Working Speed

600~1000pcs/min

Color

1

Cut angle

90°/60°/45°

Machine dimension

9m*1m*1.3m

Machine weight

1.5 Ton

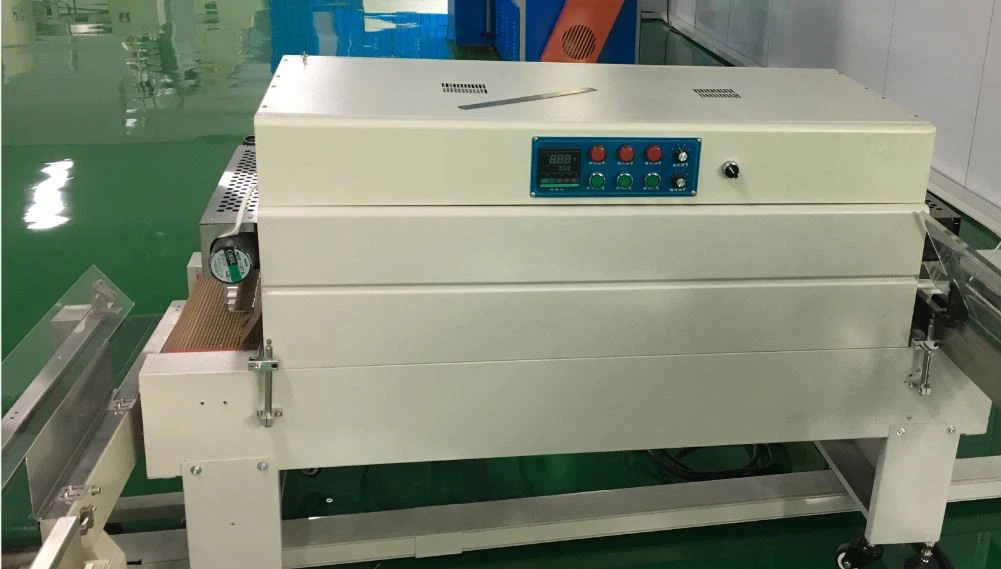

Automatic dryer

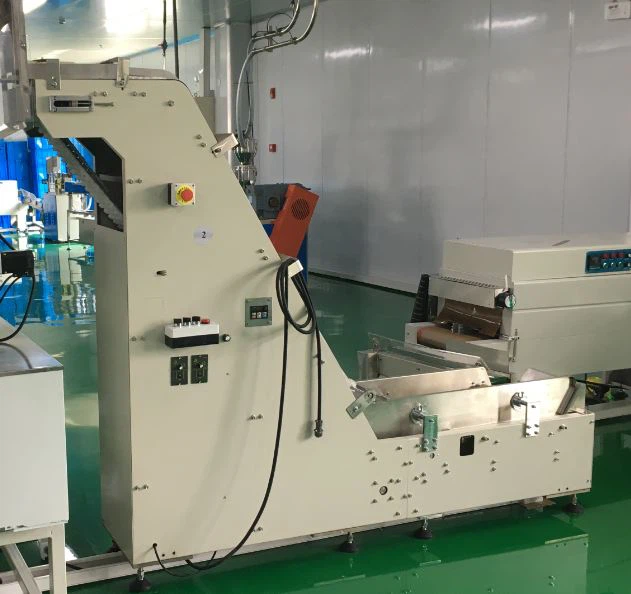

Automatic Elevator
