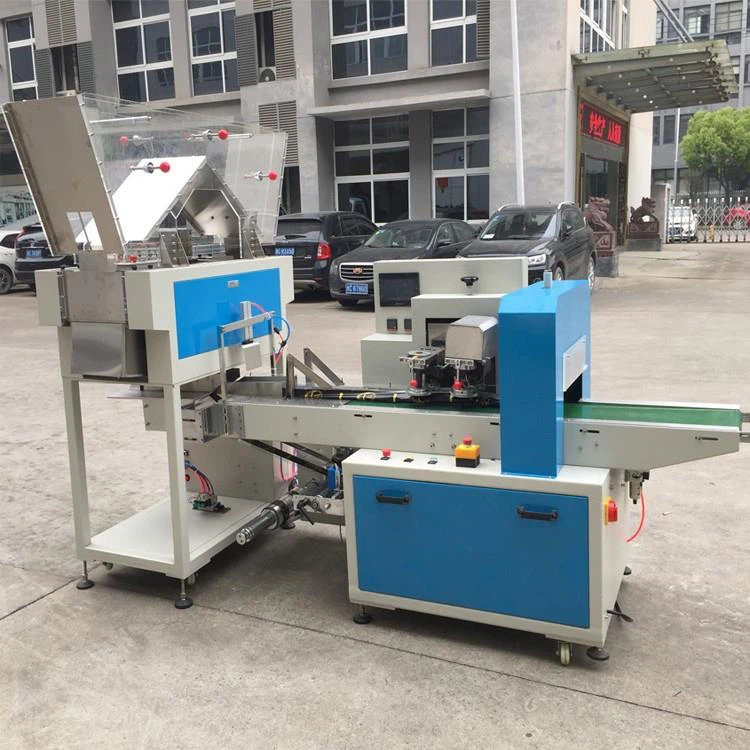

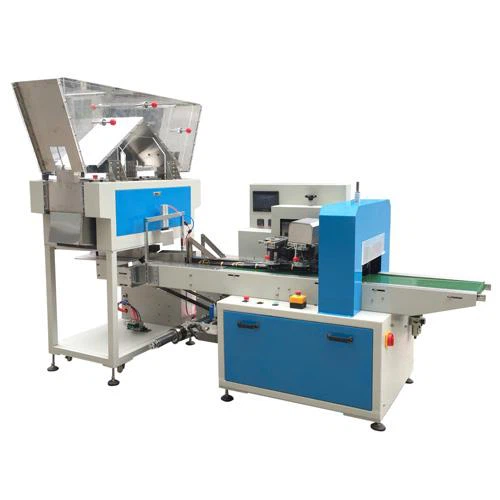

Paper Straw Packing Machine includes automatic feeding, automatic counting, back sealing, end sealing and cutting system.

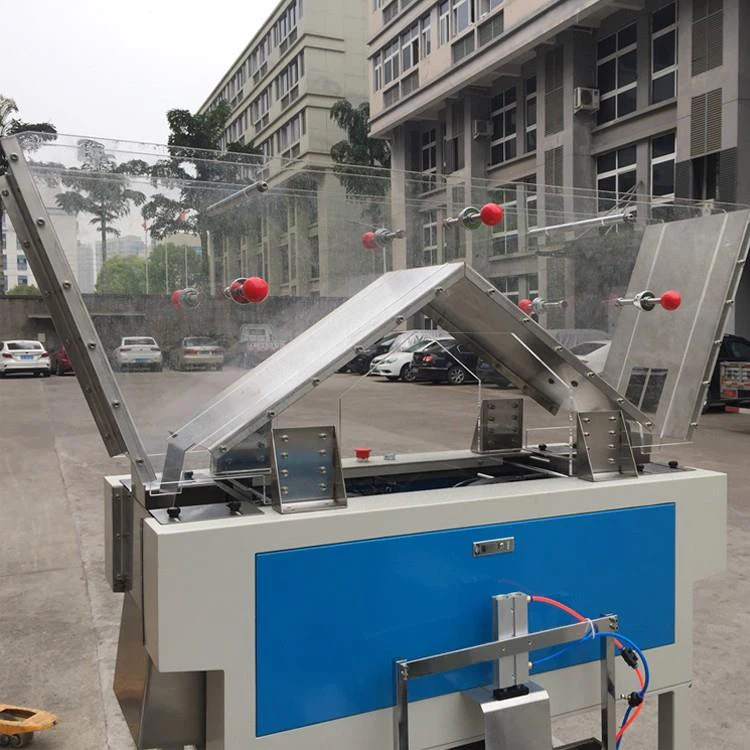

This kind of paper straw wrapping machine working principle as below: Straws are well loaded in the hopper manually and are discharged in one or two ways by motorized system. The counting system counts straw, Once target quantity is finished, cylinder pusher will push straws into forming film, film will be heat sealed by back sealing system, then go to end sealing part, cut off the film.

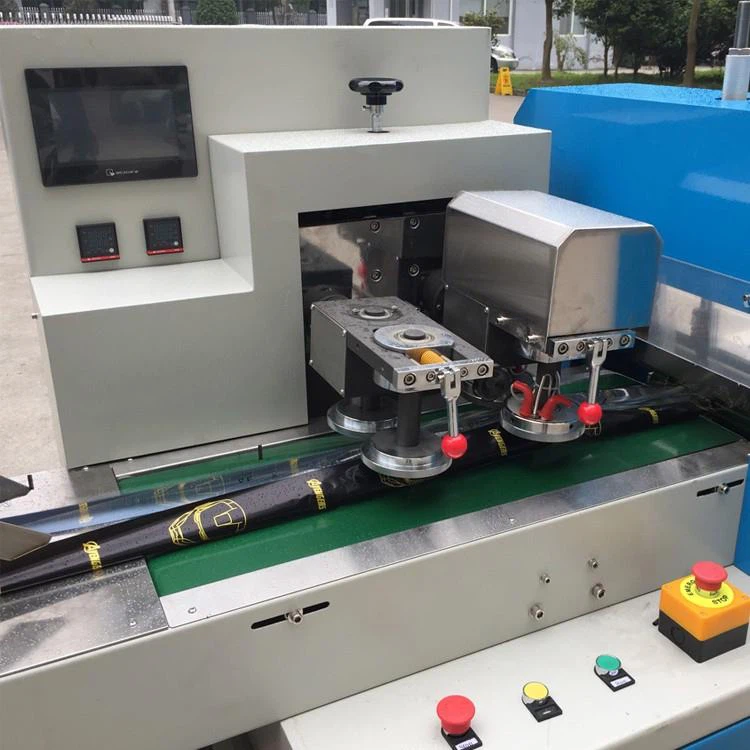

1. Bulk straw packing machine, which Human-Machine Interface adopt imported touch screen, language is English and Chinese, other language should be customized.
2. Bag length can be set in touch screen: for different straw length, need to change bag length, it can be done in screen, no need to change any gears or others.
3. Adopt high accuracy photocell tracking systems: this machine can use transparent film and printed film, when use printed film, turn on the function of photocell tracking system in touch screen.
4. Automatic counting function: one or two ways for feeding straws, counter is Panasonic brand from Japan, it can count odd quantity for straws, such like 25 pieces, 75pcs.
5. Bag length detect automatically: when use printed film, bag length can be detect automatically
Model |
AB-600D |
Max. film width |
530mm |
Packing Speed(Adjustable) |
8-18 bag/min |
Film thickness |
0.03-0.06mm |
Bag Length |
90–600mm |
Bag Width |
80–250mm |
Straw quantity |
5-300pcs |
Power Supply |
220V, 50/60 Hz, 3 KW, 1 Phase |
Machine Size (L x W x H) |
3000 × 1400 x 1400 mm |
Machine Weight |
550 Kg |
Main electrical parts:
Name |
Model |
Quantity |
Brand |
Touch screen |
TK6071iQ |
1 |
Weinview |
PLC |
FP-X0 L30R |
1 |
Panasonic |
Servo motor |
MCDKT3520E |
1 |
Panasonic |
Relay |
RXM2LB2BD |
7 |
Schneider |
Air switch |
C25/C10 |
1/3 |
Schneider |
Power supply |
ABL2REM24015H |
1 |
Schneider |
Valve |
|
1 Set |
Jelpc |
Photoelectric switch |
Z3N-TB22 |
1 |
Julong |
Machine parts:
How are paper straws manufactured?
The paper straw is a kind of environmental protection plastic straw. After a few months of application, it will biodegrade and subside in the soil layer. The world’s paper straw sales market can be physically divided into North America, Asia including Japan, South America, Western Europe, Europe, the Middle East, and Latin America. Because of the successive promulgation of relevant requirements prohibiting the use of disposable straws, paper straws It is widely used in such countries and regions. The market for paper straws is vast.
For a paper straw to be successfully manufactured, three grams of paper straw base paper must be used. They are 28 grams of paper straw base paper for the application of the outer packaging box of the paper straw, and 60 grams of paper straw base paper for the surface packaging and printing of the paper straw. 120 grams of paper straw base paper is used for the inner layer of paper straws; among them, there are different performance requirements for different grams of paper straw base paper. 28 grams of paper used for paper straw packaging papers can meet the food-grade stainless steel specifications, 60 grams The paper straw base paper stipulates that the packaging and printing effect is very good. The 120g paper straw base paper stipulates high compressive strength, can withstand the paper straw and is not easy to deform, and has good moisture resistance.
