Plastic Straw Packing Machine

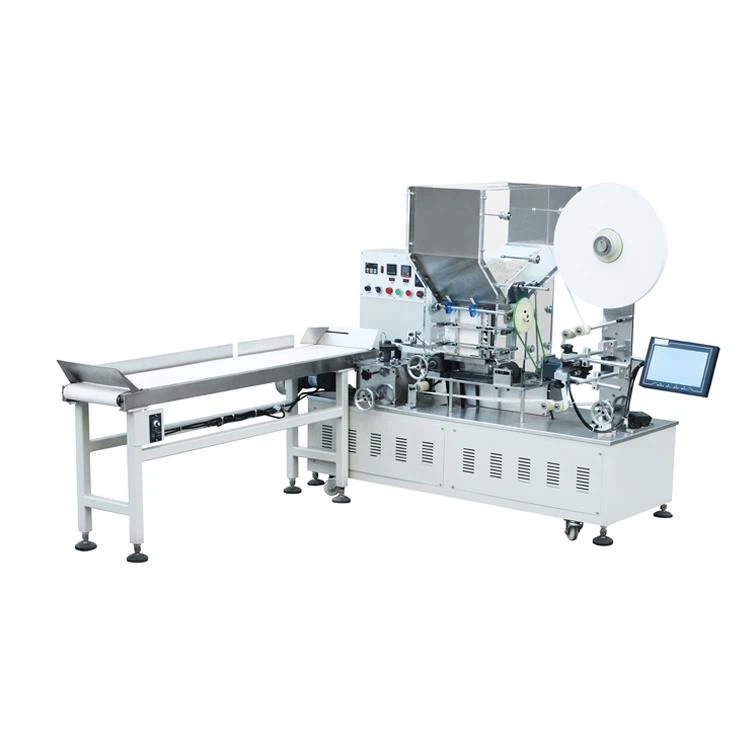

Plastic Straw Packing Machine comprises driving motor, driving system, paper-roll unwinding device, straw-feeding device, automatic sealing device, conveying device for finished products, etc. It can seal the film as well as paper.

Related file download

Product Description

Plastic Straw Packing Machine


Product Description Of Plastic Straw Packing Machine

Plastic Straw Packing Machine is an equipment for packing straight or flexible straw in bag automatically. The machine is made of driving motor, driving system, paper-roll unwinding device, straw-feeding device, automatic sealing device, conveying device for finished products, etc. It adopts frequency conversion control, which is stable and easy to operate. This machine has high degree of automation, high production speed, and can complete feeding and packaging at one time. In addition, this drinking straw packing machine have counting alarm function. Once the preset value of product quantity is reached, the machine will stop running and give an alarm.

With regards to paper packing, one color or two color printing is also available. Plastic Straw Packing Machine can use paper or plastic film to packing straight straw, flexible straw, spoon straw and milk tea straw. The Packing speed can be adjusted freely. It is not only reliable but also can save much of your cost.


Features Of Plastic Straw Packing Machine

1. Single straw packing machine adopt frequency inverter for control, working steady and operation easily.

2. This drinking straw packing machine have counting alarm function.

3. Single piece packing, feeding and can be completed at one time.

4. Automatic counting design, convenient for secondary packing.

5. Adjustable packing speed.


Specifications Of Plastic Straw Packing Machine

Model

AB-031

Drive motor

0.75kw

Speed

200~500pcs/minute

Seal

Back side sealing

Material

BOPP or paper material

Straw size

Diameter

4~12mm

Length

150~260mm

Other size made by order

Machine size and weight

1500 × 800×1300mm 300kg

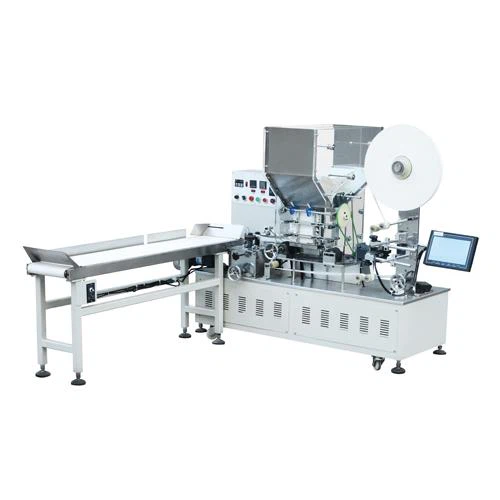

Machine parts:

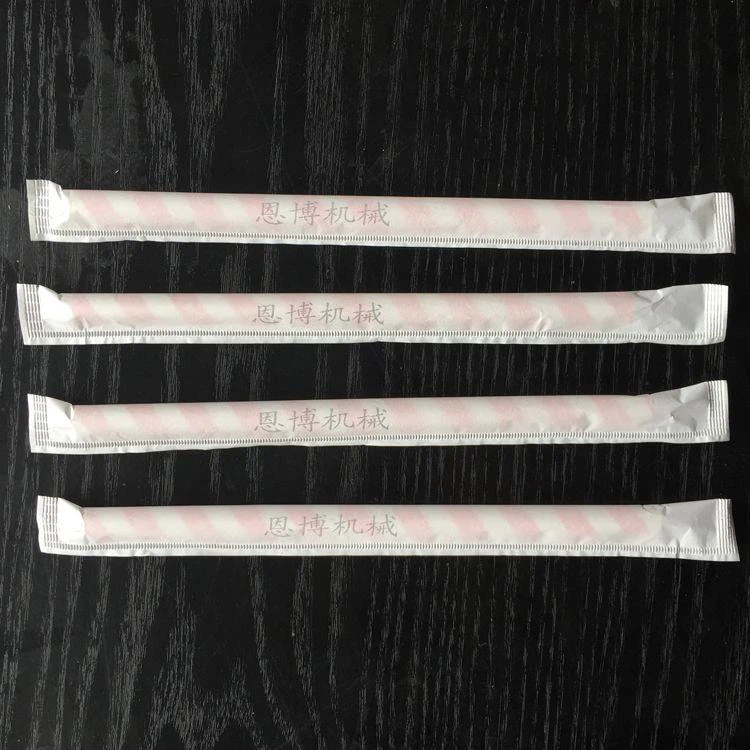

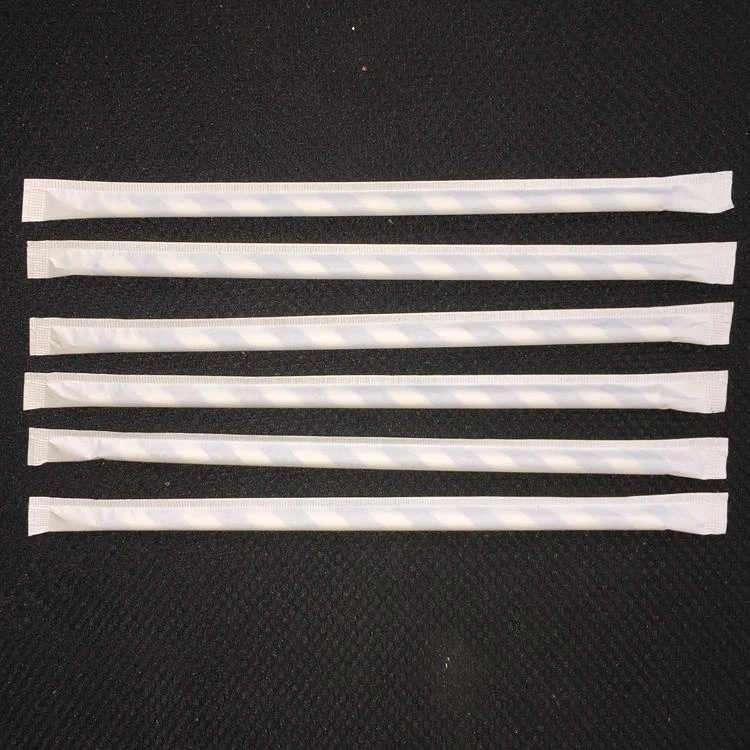

Package Samples Of Plastic Straw Packing Machine


FAQ

What is the future development trend of plastic straw packing machine?

With the continuous development of science and technology, the competition of packaging machinery is becoming increasingly fierce. In the future, packaging machinery will cooperate with industrial automation to promote the improvement of the overall level of packaging equipment and develop multi-functional, high-efficiency and low-consumption packaging equipment.

1.Mechatronics

The essence of mechatronics is to use process control principles to organically combine machinery, electronics, information, detection and other related technologies from a system perspective to achieve overall optimization.

Generally speaking, it is the introduction of microcomputer technology to packaging machinery, the application of electromechanical integration technology, the development of intelligent packaging technology, and the production of automatic packaging systems according to the requirements of product automatic packaging technology, detection and control of the production process, fault diagnosis and Elimination will achieve full automation, achieving high speed, high quality, low consumption and safe production. The most common plastic bag sealing machine, its sealing quality is related to packaging materials, heat sealing temperature and operating speed. If the material (material, thickness) changes, the temperature and speed will also change, but it is difficult to know how much the change is. For example, using microcomputer control, the best parameters of the sealing temperature and speed of various packaging materials are matched and input into the microcomputer memory, and then equipped with necessary sensors to form an automatic tracking system, so that no matter which process parameter changes, the best can be guaranteed Sealing quality.

2.The plastic straw packing machine of the future will adopt new technologies to establish a new packaging machinery system that is automated, diversified, and multifunctional.

The development trend of its technology is mainly reflected in the high productivity, automation, single machine multi-function, multi-function production line, and the use of new technologies. Such as: multi-station bag making vacuum packaging machine, its bag making, weighing, filling, vacuuming, sealing and other functions can be completed on a single machine; several machines with different functions and matching efficiency can be combined into functions More complete production line.

Application of heat pipe and cold sealing technology in sealing. In addition, with the progress of packaging from a single technology to a combination of processing, the packaging technology field should be extended to the processing field, and packaging and processing integrated food processing packaging equipment should be developed.
