Straw Production Packing Line

Straw production packing line is suitable for packing groups drinking straw in one bag, it can work for paper straw, plastic straw, wheat straw and PLA straw. packing quantity for standard machine is 10-150 pieces, more quantity should be customized.

Related file download

Product Description

Straw Production Packing Line


Scope of Application Of Straw Production Packing Line

Straw production packing line is suitable for packing groups drinking straw in one bag, it can work for paper straw, plastic straw, wheat straw and PLA straw. packing quantity for standard machine is 10-150 pieces, more quantity should be customized.


Features Of Straw Production Packing Line

1. Plastic straw production packing line use Human-Machine Interface in English, adopt weinview touch screen.

2. Automatic straw packing machine for packing straws with different diameter and quantity, need to change former.

3. Paper straw online machine adopt high accuracy photocell tracking systems, it can work for printed film as well.

4. Machine include accuracy counting system.

5. Regarding packing material for this machine, it should be BOPP, CPP, Paper with PE, PLA.


Specifications Of Straw Production Packing Line

Model

AB-031(single pack)

Drive motor

0.75kw

Speed

200~500pcs/minute

Seal

Back side sealing

Material

BOPP or paper with PE

Straw size

Diameter

4~12mm

Length

150~280mm

Other size made by order

Machine size and weight

1500 × 800×1300mm 300kg


Model

AB-600XGLJ (Bulk pack)

Max. film width

530mm

Packing Speed(Adjustable)

3-10 bag/min

Film thickness

0.03-0.06mm

Bag Length

60–600mm

Bag Width

80–250mm

Straw quantity

10-100pcs

Power Supply

220V, 50/60 Hz, 3 KW, 1 Phase

Machine Size (L x W x H)

2600 × 980 x 1250 mm

2000 x 800 x 1000mm

Machine Weight

550 Kg


Main electrical parts:

Name

Model

Quantity

Brand

Touch screen

TK6071iQ

1

Weinview

PLC

FP-X0 L30R

1

Panasonic

Servo motor

HJ-KS73J

1

Mitsubishi

Relay

RXM2LB2BD

7

Schneider

Air switch

C25/C10

1/4

Schneider

Power supply

ABL2REM24015H

1

Schneider

Valve


1 Set

Smuk

Photoelectric switch

Z3N-TB22

1

Julong

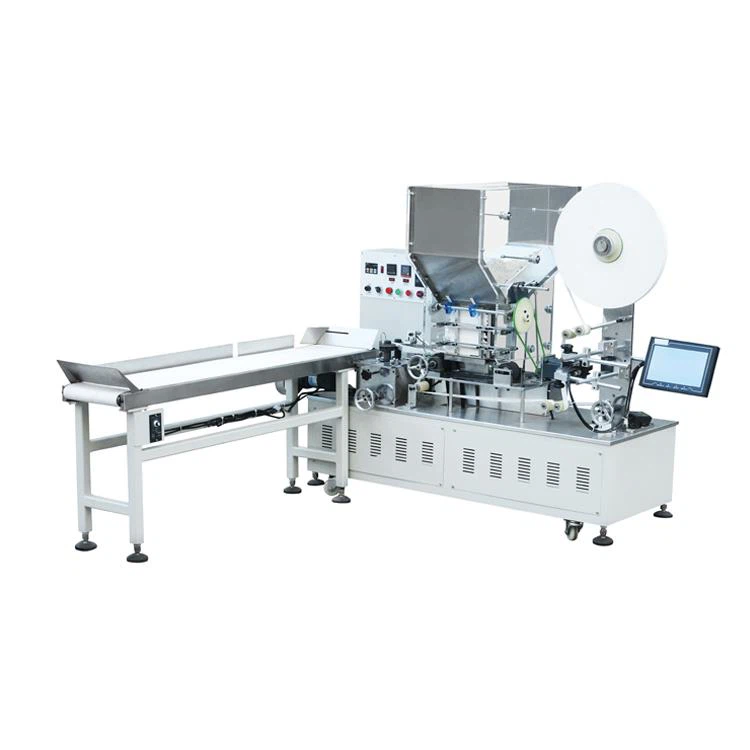

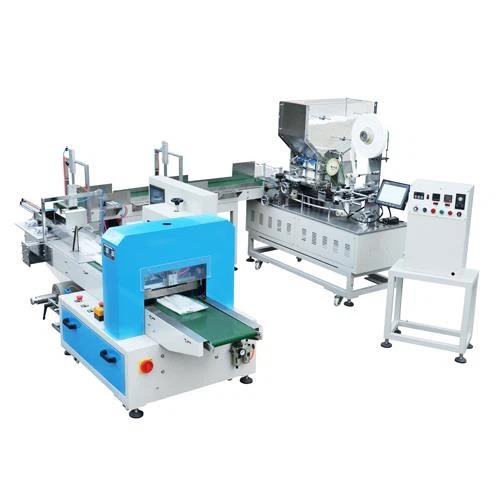

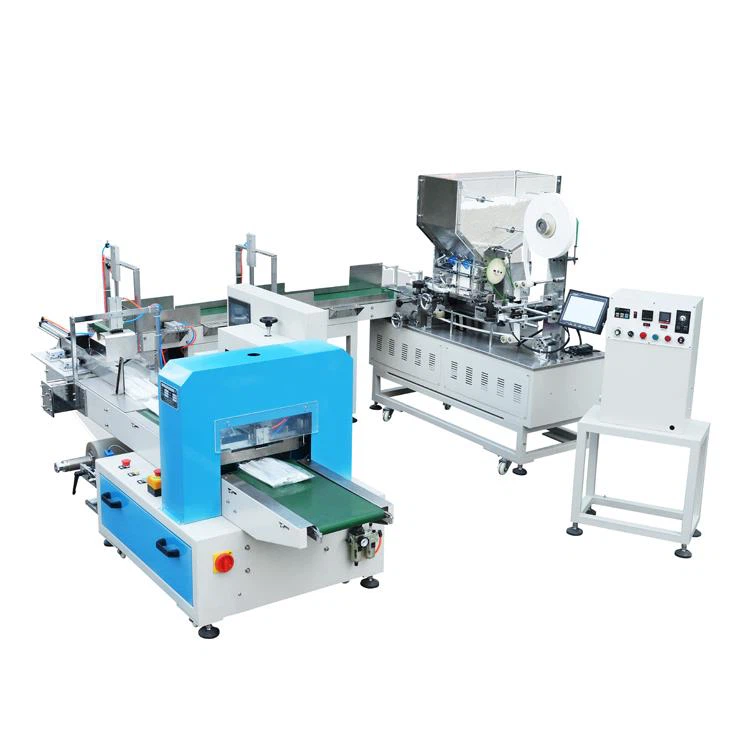

Machine Pictures Of Straw Production Packing Line

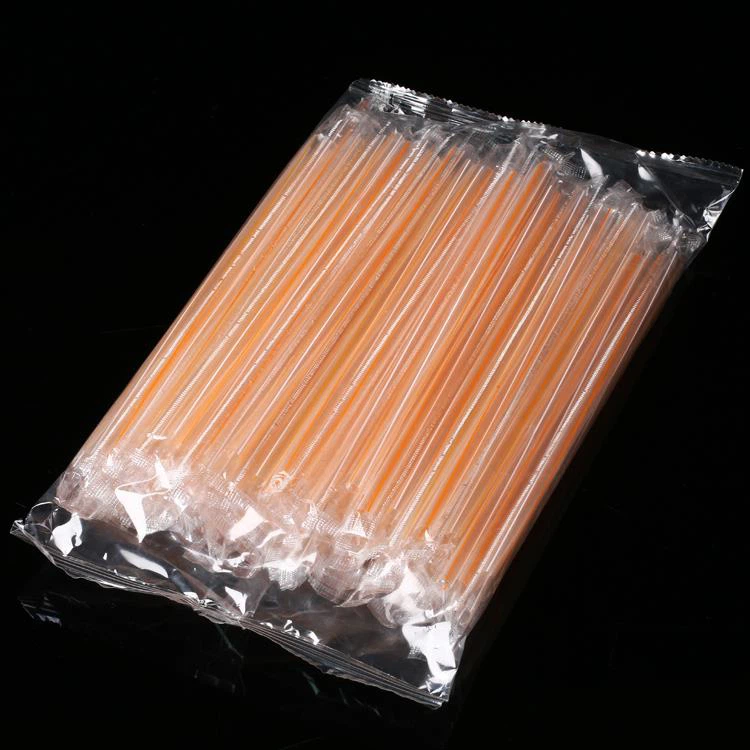

Package Samples Of Straw Production Packing Line
