Drinking Straw Packing Machine

This drinking straw packing machine is a specialized machine used to pack various types and quantities of straws. Drinking straw packing machine filling, packaging can be completed at one time, fast and reliable.

Related file download

Product Description

Drinking Straw Packing Machine


Description Of Drinking Straw Packing Machine

This drinking straw packing machine is a specialized machine used to pack various types and quantities of straws. Drinking straw packing machine filling, packaging can be completed at one time, fast and reliable. The body adopts stainless steel design, which is strong and durable, and meets food hygiene requirements. The whole machine is composed of film unwinding device, straw filling device, driving system, driving motor, automatic sealing device and finished product conveying device.


Features Of Drinking Straw Packing Machine

1. Panasonic PLC control, accurate calculation

2. Weinview touch screen, easy to use, easy to adjust

3. Photoelectric tube detection, high precision, very wide range of speed and length, can automatically detect bag length

4. Three side seal H (pillow seal), good sealing effect

5. Automatic counting, feeding and packaging. The straw counting and packaging are two separate parts that can be operated separately.


Specifications Of Drinking Straw Packing Machine

1


Model

AB-850XGLJ

Max. film width

850mm

Working speed

3-10 bag/min

Film thickness

0.02-0.06mm

Bag Length

60–600mm

Bag Width

80–250mm

Straw quantity

50-200pcs

Power Supply

220V , 50/60 Hz , 3 KW, 1 Phase

Machine dimension (L x W x H)

2600 ×1500 x 1550 mm

2000 x 800 x 1200mm

Weight

750 Kg


Main electrical parts:

2

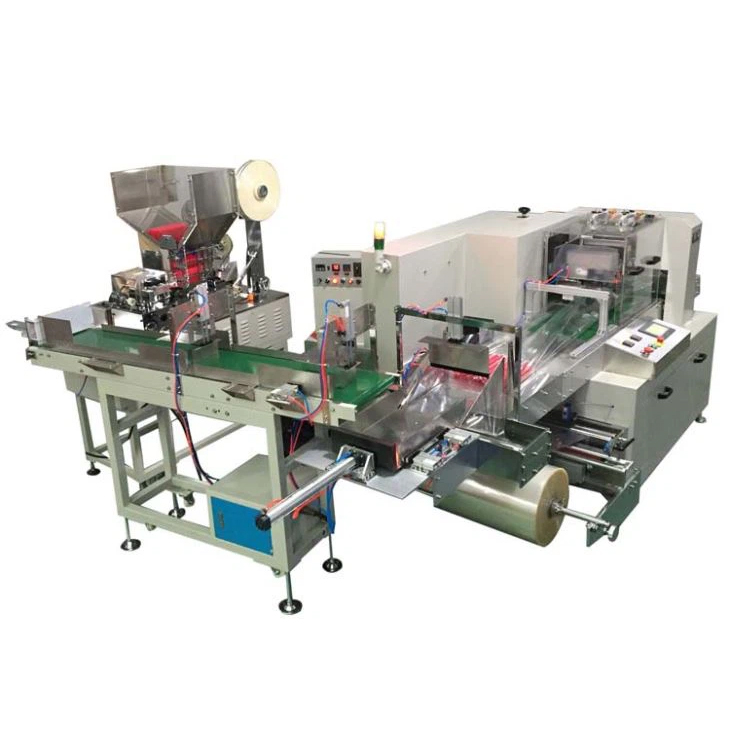

Pictures Of Drinking Straw Packing Machine

750

750-2


Samples

750-3
