Paper Straw Counting Machine

Paper straw counting machine is suitable for counting groups drinking straws, incense sticks, pencil, pen in one bag, 5-500pcs can be count according to various diameter. workers could take out of the straws and put into paper carton of paper box.

Related file download

Product Description

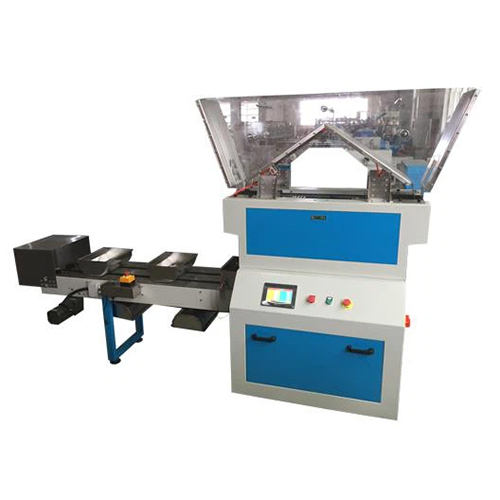

Paper Straw Counting Machine


Description Of Paper Straw Counting Machine

Paper straw counting machine is a highly automated equipment. It is widely used in medicine, food and beverage, household chemicals and other industries. Paper straw counting machine can greatly reduce the material and labor costs of using medium box packaging, which has important economic significance.


Machine Application Of Paper Straw Counting Machine

Paper straw counting machine is suitable for counting groups drinking straws, incense sticks, pencil, pen in one bag, 5-500pcs can be count according to various diameter. workers could take out of the straws and put into paper carton of paper box. This machine consists of straw hopper, counting device, conveyor mechanism and electrical control and so on.


Features Of Paper Straw Counting Machine

1. Drinking straw counter machine is controlled by Panasonic PLC, the counting number of each time, could be controlled and adjusted.

2. Straw quantity and running speed can be set on touch screen.

3. Machine adopt two way loading.

4. Drinking straw counter can work for different diameter straws.

5. Big hopper for loading lots of straws.


Main configuration and specification for each mechanism

A. Funnel tank

This mechanism is manual width adjustable, using independent gear reduction motor drive swing arm to carry out straw adjustment and roller balance into the track, swing arm and roller speed can be adjusted arbitrarily

1. Stock specification: Load quantity 10000pcs

2. Motor control: speed control operation200-600RPM/min

3. Track adjustment : φ5 φ6 φ8 φ10。


B. Counting device

The device adopts 304 stainless steel high-precision disc molds, the molded shaft is adjusted and positioned and the molded tooth size is easily replaced. The molded teeth are transferred by the frequency converter speed regulating motor and electromagnetic clutch to brake and high-precision photocell sensor matching. The speed of counting can be manually adjusted arbitrarily.


Specifications Of Paper Straw Counting Machine

Model

AB-250DS

Counting Speed(Adjustable)

10-30 times/min

Straw diameter

4-12mm

Straw length

160-300mm

Straw quantity

5-500pcs

Power Supply

220V, 50/60 Hz, 1 KW, 1 Phase

Machine Size (L x W x H)

3200 × 1600 x 1900 mm

Machine Weight

230 Kg


Main electrical parts:

1


Machine parts:

1


750-2


750-3


Samples Of Paper Straw Counting Machine

750-4


750-5
