Paper Roll Slitter Rewinder

The paper roll slitter rewinder is to rewind and slit the large-axis base paper into various specifications of paper for the production of paper napkins and facial cells. The paper roll slitter rewinder has 2 kinds with ordinary paper feeding rack or with pneumatic synchronous paper feeding gadget.

Related file download

Product Description

Paper Roll Slitter Rewinder


Description Of Paper Roll Slitter Rewinder

The paper roll slitter rewinder is to rewind and slit the large-axis base paper into various specifications of paper for the production of paper napkins and facial cells. The paper roll slitter rewinder has 2 kinds with ordinary paper feeding rack or with pneumatic synchronous paper feeding gadget.

Paper roll slitter rewinder is a paper processing tools that reduces and also rewinds wide webs into rolls of different widths and sizes. It is extensively made use of in paper processing industry or mechanical devices before as well as after printing. Our paper roll slitter rewinder adopts PLC and touch display control, and also takes on regularity conversion speed policy.

The paper roll slitter rewinder has a wide range of applications and is suitable for a variety of coil materials, such as BOPP, CPP, PET, PVC, CPE, aluminum foil and paper. And the edges are beautiful and neat, and materials of different sizes can be separated and cut according to requirements.


Features Of Paper Roll Slitter Rewinder

1. Paper slitting rewinding equipment is vertical slitting & rewinding machine

2. Independent control board, even more adaptable and very easy operation.

3. Automatic tension controller and magnetic powder brake for loosening up tension control.

4. Main electric motor with frequency converter for speed adjust.


Technical Parameters Of Paper Roll Slitter Rewinder

Model

MFQ-1300

Max. roll width

1300mm

Max. roll diameter

600mm

Final roll width

30-1200mm

Slitting & rewinding speed

5-160m/min

Tolerance of EPC

0.5mm

Total power

3.5KW

Machine weight

1800KG

Overall dimension

2600x1110x1400mm

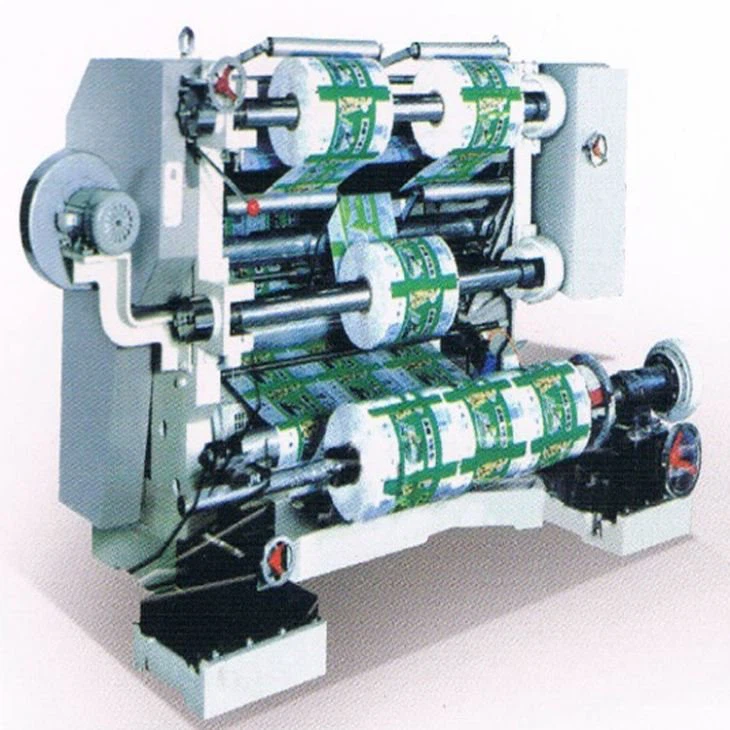

Physical Pictures Of Paper Roll Slitter Rewinder

2
