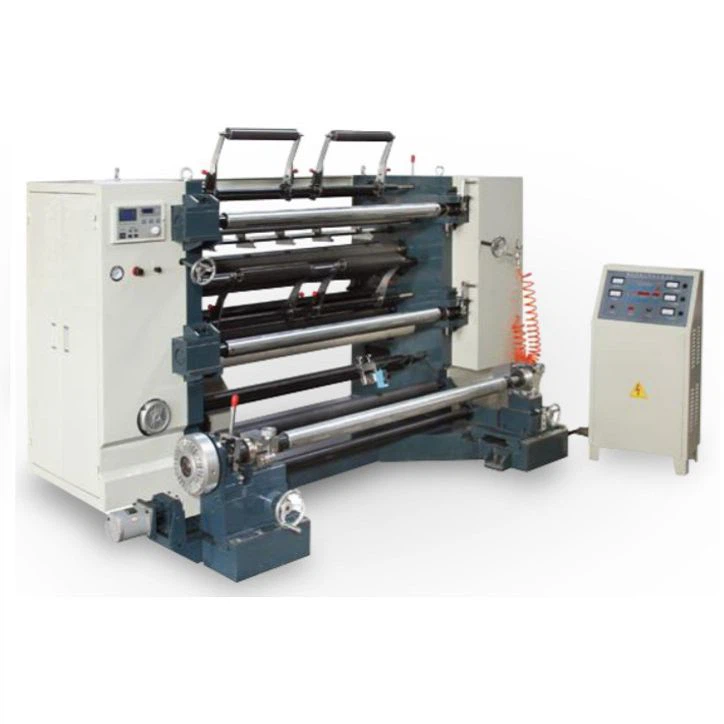

The small bopp tape cutting machine is composed of an unwinding mechanism, a cutting mechanism, a winding mechanism, various functional rollers, and a tension control correction control and detection device. The small bopp tape cutting machine is widely used in packaging and other laminating industries.
1. The small bopp tape cutting machine has a compact and reasonable structure and beautiful appearance.
2. The base and side plates are made of stainless steel, which is firm and reliable.
3. The rewinding adopts the upper and lower double air expansion shafts in the same direction and the center rewinding method. The clamping of the rewinding and unwinding and the movements of the cutter shaft and the pressure roller are fully pneumatically controlled, and the operation is simple and fast.
4. Smooth and reliable operation, low noise.
5. The tension control has high precision, fast response and wide adjustable range.
6. Each function can be configured according to customer requirements.
|
Model |
AB-FQ620 |
|
Slitting Speed |
150m/min |
|
Cutting precision |
±0.15mm |
|
Guiding precision |
±0.15mm |
|
Min Width of cutting |
10mm |
|
Max Width of Web |
620mm |
|
Max Cutting Diameter |
600mm |
|
Max Feeding Diameter |
1000mm |
|
Max Rewinding Diameter |
600mm |
|
Machine Power |
5.5kw |
|
Power Supply |
220V 50HZ |
|
Dimension |
2.5*1.45*1.18m |
|
Weight |
1250Kgs |
