Automatic Cartoning Machine

Automatic cartoning machine is suitable for inserting tube, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality.

Related file download

Product Description

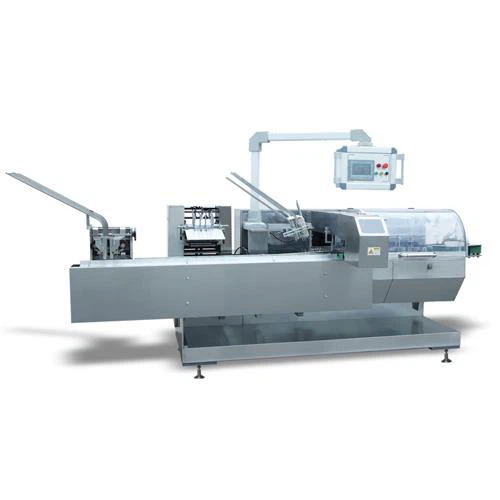

Automatic Cartoning Machine


Description Of Automatic Cartoning Machine

This  is suitable for inserting tubular and pillow packing products, medical products, food and other similar packing into cartons within a certain range. It is composed of canton suction, printing batch number, sealing carton with flap inserting or hot melt glue device. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. Moreover, the inching device of the machine makes the equipment can be moved at will, which is convenient to adjust boxes of various specifications.

This Automatic cartoning machine has multi-functional packing operation, all kinds of complex packing work completed at the same time. The product is stable in performance and easy to control in operation. It is suitable for biscuit box, milk powder box, toy box, medicine, coffee, food and other industries.


Technical Parameters Of Automatic Cartoning Machine

Model

ZH-100

Capacity

30-100 boxes/min

Overall size

3400×1550×1560

1

Box size

Min: 50×20×14mm

Max: 250×150×80mm

Box material

250-400 g/m2

Air pressure

≥0.6Mpa

Total power

1.5KW

Motor power

1.2KW

Machine weight

1000Kg


Working Principle Of Automatic Cartoning Machine

The automatic cartoning machine feed is generally divided into three entrances: the manual entrance, the medicine bottle entrance and the machine package box entrance. The whole process from the machine package box feeding to the final packaging molding can be roughly divided into four stages: a guide rail is used to fix the carton and a push plate is used to open the carton. At the same time, there will be two forward-moving cards from Raise the bottom, jam the side of the carton from front to back, open the box at a right angle and move it forward to the loading area. After filling in the filling area, the mechanism of the machine will fold the ears into the left and right guide rails, and then perform the closing action. The pre-closing mechanism first bends the tongue of the box, and then a push plate pushes the lid to bend, so that the tongue is inserted into the box and the lock is fastened. The closing action is a critical action, and the quality of completion has a lot to do with the structure of the carton and the accuracy of the machine adjustment.


Classification Of Automatic Cartoning Machine

According to the machine's own structure, the cartoning machine can be divided into: vertical cartoning machine and horizontal cartoning machine. Generally speaking, the vertical cartoning machine packaging speed is relatively fast, but the range of packaging is relatively small, generally only for a single product such as medicine board, while the horizontal cartoning machine can box a variety of products, such as soap , Medicine, food, hardware, auto parts, etc.


Functions And Options Of Automatic Cartoning Machine

● The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum

● No suction carton by missing product

● Product will be manually loaded on conveyer by manual, then other things finished automatically.

● Automatically displaying device for trouble, speed and finished products counting

● Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return

● Adopt human-machine operation system.

● International famous brand of electric components such for PLC touch screen, frequency inverters, etc

● Stable performance, operation is easy Controls


Sensors

● Product presence detection sensor

● Carton present detection sensor


Main Configuration List

Name

Model

Quantity

Brand

Touch screen

GT1050

1

Mitsubishi

PLC

FX3G-40MT

1

Mitsubishi

Frequency inverter

FR-D720

1

Mitsubishi

Relay

MY4N/ DC24V

1

Omron

AC contactor

LC1-E1810

1 Set

Schneider

Breaker

C65N

1 Set

Schneider

Solenoid valve

4V210-08

1 Set

Airtac

Motor

CH32/1.5KW

1

Taiwan

Encoder

E6B2-CWZ6C

1

Omron

Photoelectric switch

E3Z

1 Set

Omron

Button

ZB2

1 Set

Schneider

Proximity switch

Ni5-12-AN6x

1 Set

Turck

Stainless steel cover


1 Set



Physical Pictures Of Automatic Cartoning Machine

11


12


13


Finished Samples Of Automatic Cartoning Machine

5
