Flow Wrapping Machine

Flow wrapping machine has been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc.

Related file download

Product Description

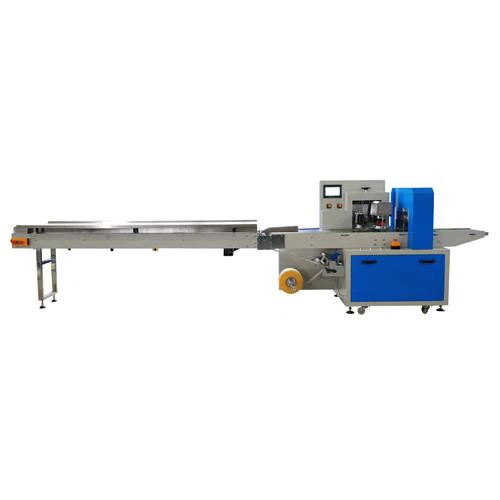

Flow Wrapping Machine


Product Description Of Flow Wrapping Machine

The Flow wrapping machine is a versatile machine with stable performance and a wide range of uses. Flow wrapping is a horizontal packaging process in which product enters the machinery and is wrapped in clear or printed film. The machine comprises conveyor, bag former, sealing, film edge cutting and rewinding, shrink-wrapped. Equipped with temperature independent PID control, it is suitable for various packaging materials. Moreover, it has touch screen Interface which means it is convenient to set and save the parameter.

The machine is fully electronically controlled and suitable for any type of feeding technology. The standard features include pre-programmed and stored product set up, stainless steel frame construction and user friendly color touch screen HMI. This Flow wrapping machine is widely used for a variety of products from food and bake goods to regular household items and stationary.


Main Product Description Of Flow Wrapping Machine

Model

AB-250AM

AB-350AM

AB-450AM

Max. film width

230mm

330mm

430mm

Packing speed

70-180 bag/min

60-160 bag/min

50-150bag/min

Film thickness

0.03-0.06mm

0.03-0.06mm

0.03-0.06mm

Bag length

60–200mm

90-300mm

90-300mm

Bag width

20–100mm

30-140mm

50-180mm

Product height

1–40mm

1-80mm

1-80mm

Power supply

220V,50/60 Hz

220V,50/60Hz

220V,50/60Hz

Machine size(mm)

4200×780x1350

4200x830x1350

4200x830x1350

Machine weight

470kgs

530Kg

550Kg


Features Of Flow Wrapping Machine

1. Flow packing machine controlled by PLC, hence steady in performance and easy to operate.

2. Touch screen Interface, set and save the parameter easy and quick.

3. Main motor equipped with high quality dual frequency inverter.

4. High accuracy photoelectric tracking system with automatic compensation.

5. The conveying chain can be adjusted without stopping machine.

6. The machine can be equipped with nitrogen filling device and date printer.


Machine Parts Of Flow Wrapping Machine

1


2


3


Samples Of Flow Wrapping Machine

11


12
