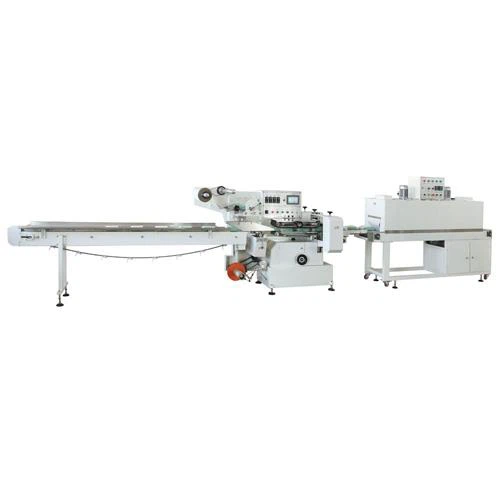

The shrink packaging machine is a machine that wraps the product with a heat shrinkable film and then heats it to shrink the film and wrap the product. According to the machine type, it is divided into drying tunnel type shrinking machine, oven type shrinking machine, frame type shrinking machine and gun type shrinking machine.
Our shrink packaging machine is suitable for multiple items to be wrapped tightly, and adopts digital display computer to control the temperature automatically, and the temperature difference is small. The equipment is compact, short preheating time, power saving, stable and reliable, low noise, and long life.
This Shrink packaging machine is suit for packing food, medicine, beverage, bowl noodles, milk tea, mosquito-repellent incense, wallpaper, exercise book, filter, electric switch, fresh-keeping film, garbage bag, stationery, industrial parts and cosmetics, bath bomb etc.
Automatic shrink packing machine adopts Japanese technology, all of which use imported electrical components. It is a high-speed automatic packaging machine born from Japan's advanced technology and rich experience.
The machine is simple to operate, reliable in quality and stable in performance. Frequency conversion, variable speed. The control of the whole machine is centralized by PLC, which reduces the failure points. High efficiency double temperature zone of heat shrinkage furnace, infinite speed regulation, automatic temperature control. Efficient hot air circulation to ensure shrinkage quality
The color touch screen control system, driven by three servo motors, is easy to operate, high stability, high packaging efficiency and low failure rate. The bag length, speed and temperature can be adjusted independently, and the operation is convenient and accurate.
Cut-proof safety clutch without damaging packaging.
High sensitivity photoelectric eye color mark tracking, mathematically input the sealing position, so that the sealing position is more accurate.
Temperature independent PID control, better suitable for all kinds of coating materials.
Positioning stop function, no sticking knife, no waste of film.
The transmission system is simple, reliable and easy to maintain.
Cut to the product automatically reversed, restart directly after boot convenient operation.
Increase waste recycling device, make packaging more beautiful, save about 20% - 30% material than traditional folding packaging machine.
It can be equipped with a typewriter or a jet printer without manual use.
With motor brake control, the equipment is sensitive.
High efficiency double temperature zone, high efficiency hot air circulation, automatic temperature control to ensure the quality of shrinkage.
|
Model |
AB-590H |
|
Max. film width |
590mm |
|
Packing Speed (Adjustable) |
30-150 bag/min |
|
Film thickness (POF) |
0.018-0.06mm |
|
Bag Length |
120–530mm |
|
Product Width |
30–200mm |
|
Product Height |
30–130mm |
|
Power Supply |
Host machine 220V, 50Hz Shrink machine 380V, 50Hz |
|
Machine Size (L * W * H) |
Host machine 5000×1105×1750mm Shrink machine 2500×600×1700mm |
|
Machine Weight |
Host machine 1000 Kg Shrink machine 600 Kg |
