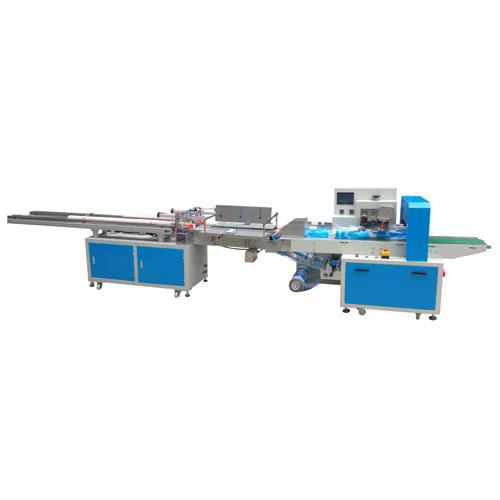

Paper Cup Counting Packing Machine

Paper cup counting packing machine is suitable for counting and packing plastic disposable cup and disposable bowls. The quantity according to client's requirement. And this cup counting packing machine can work for 5-100 pieces.

Related file download

Product Description

Paper Cup Counting Packing Machine


Main Functions Of Paper Cup Counting Packing Machine

1. The scope of supervision is larger, the scope of packaging is wider, and the packaging is more compact. Ensure long-lasting and smooth operation.

2. Compact structure, stable performance, simple operation, safe and reliable. The paper cup packaging machine is driven by Panasonic control system and Panasonic servo motor.

3. High production efficiency, 5-100 pieces can be worked. It has a wide range of applications, suitable for counting and packaging a variety of plastic disposable cups and disposable bowls.

4. Counting adopts optical fiber control and synchronous adjustment. The requirements for the cup are not high, and the application range is wide. High counting accuracy, convenient adjustment and flexible packaging.

5. Paper cup counting packing machine adopts direct-push design to ensure smooth counting and packaging and reduce the failure rate.


Technical Parameters Of Paper Cup Counting Packing Machine

Model

AB-600-2

Max. film width

560mm

Packing Speed(Adjustable)

1000-2000 pcs/min

Film Thickness

0.03-0.06mm

Bag Length

300–800mm

Bag Width

50–200mm

Max. Cup diameter

150mm

Cup quantity

10-200 pcs

Power Supply

220V, 50/60 Hz, 4KW, 1 Phase

Machine Size (L * W * H)

6000 × 1000 x 1450mm

Machine Weight

900 Kg


Main electrical parts:

Name

Quantity

Brand

PLC

1

Panasonic

Servo motor

4

Panasonic

Laser

1 Set

Panasonic

Proximity switch

4

Omron

HMI

1

Weinview

Solid State Relay

11

Schneider

Circuit Breaker

6

Schneider

Power Supply Switch

1

Schneider


Precautions Of Paper Cup Counting Packing Machine

1. Before starting the machine, add the required lubricating oil (lubricating grease) to the oil filling point, lubrication point and oil tank of the machine.

2. Before starting the machine, check whether there are sundries in various parts of the machine body, and make sure that the machine is safe around it before starting it.

3. The staff should strictly guard their posts according to the division of labor, always pay attention to the operation of each part of the machine, and stop the machine immediately if any problems are found.

4. The work site should be kept clean and unobstructed, and there should be no debris around the ground, workbench, and machines. Maintenance tools and spare parts should be placed in the specified locations.

5. When working, no one is allowed to laugh, fight, or make loud noises around the machine. Please do not let children approach the machine.

6. Regular maintenance and repair of the machine, and filling in the maintenance and repair record data can extend the service life of the machine, improve production quality and safe production.

7. Operation is prohibited by non-staff.


Physical Pictures Of Paper Cup Counting Packing Machine

1


2


3


Package Samples Of Paper Cup Counting Packing Machine

4
