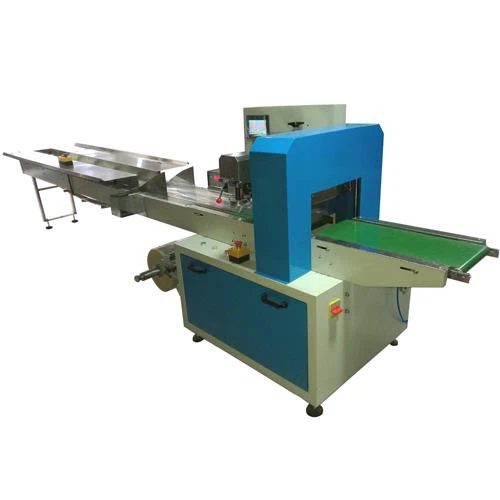

Vegetable packaging machine is a kind of heat shrinkable film automatic packaging machine, which is suitable for heat shrinkable automatic packaging of vegetables, garlic seedlings, fruits, tomatoes, cucumbers and other products. Vegetable packaging machine can be packaged individually or in any group. It is a fully automatic shrink packaging machine designed for assembly line operations and mass packaging.
According to the specific situation of the product, an automatic feeding system can be selected to realize the unmanned operation of feeding. Various types of conveyors ensure that the materials will not move or roll. After packaging, the product has a linear seal with clear and beautiful steel lines. The vegetable packaging machine adopts frequency conversion speed regulation, which reduces the cost and improves the cost performance.
Automatic vegetable packing machine , apply to packing various kinds of regular objects like food, medicine, daily appliances, metal, industrial parts, boxes, trays with fruit and etc.
1. Vegetable packaging machine adopt Panasonic PLC , Panasonic servo motor for control.
2. Human-Machine Interface in English, set and save the parameter easy and quick.
3. Touch screen interface.
4. Adopt high accuracy photocell tracking systems, can work for printed film.
5. Bag length detect automatically , easy to operated.
6. The machine can be equipped with date printer, air-filling device and auto feeder.
|
Model |
AB-600 |
|
Max. film width |
560mm |
|
Packing Speed(Adjustable) |
10-40 bag/min |
|
Film thickness |
0.03-0.06mm |
|
Bag Length |
90–500mm |
|
Bag Width |
80–250mm |
|
Product Height |
1–150mm |
|
Power Supply |
220V, 50/60 Hz, 2.5 KW, 1 Phase |
|
Machine Size (L * W * H) |
4200 × 900 x 1550 mm |
|
Machine Weight |
750 Kg |
