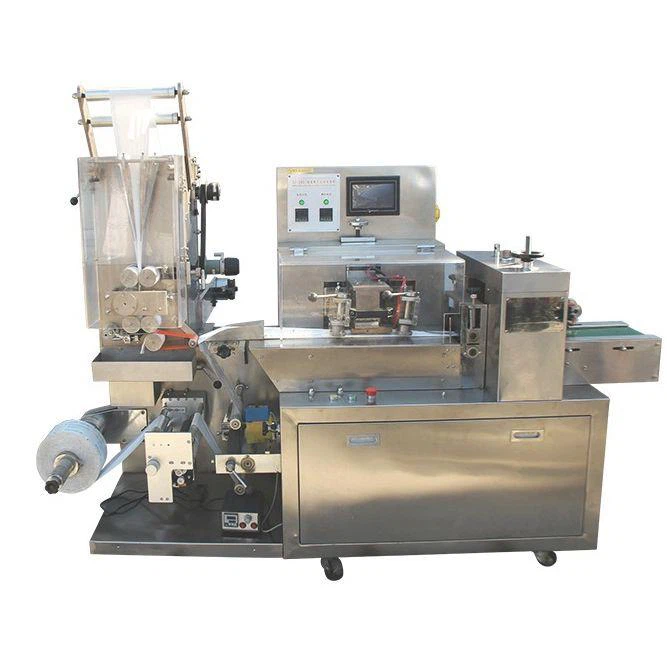

Wet tissue packing machine is designed for wet wipes packaging design and the vertical fold, the institution, fast speed, smooth operation, and can automatically accomplish; Wet wipes fold-inside and outside liquid-slice-add bag making-sealing-count-a batch number-products output and so on many features, effectively avoid the wet wipes in packaging process of secondary pollution, the machine is compact, and easy, safe, is the wet wipes packing device of choice, suitable for single piece of wet wipes the automatic packing!
1. Lubrication work. It is necessary to regularly add oil to the gear meshing parts, the oil hole of the bearing with seat and the moving parts. It is strictly forbidden to run the reducer without oil once every shift. When adding lubricating oil, be careful not to put the oil tank on the rotating belt to prevent slipping and loss of rotation or premature aging of the belt and damage.
2. Cleaning work. After the equipment is shut down, the metering part should be cleaned in time, and the heat sealer body should be cleaned frequently to ensure that the sealing lines of the packaged product are clear. The scattered materials should be cleaned up in time to facilitate the cleanliness of the machine parts, so as to better extend it. The service life, and the dust in the electric control box must be cleaned frequently to prevent electrical faults such as short circuit or poor contact.
3. Maintenance work. Before using the packaging machine, check the screws at all parts to ensure that there is no looseness, otherwise, it will affect the normal long-distance rotation of the whole machine. For the electrical parts, pay attention to waterproof, moisture-proof and anti-corrosion work. To ensure that the inside of the electric control box and the wiring terminals are clean to prevent electrical failure.
Model |
ABSJ-250 |
Packing Material |
OPP heat sealing film, composite film, aluminum compound film |
Productive Process |
Automatic folding, humidifying, cutting, packing, printing date |
Compressed Air Pressure |
0.5-0.7 Mpa |
Noise |
60-70dB |
Capacity: bag/min |
40-200 bags/min |
Size of bag |
L:60-220mm W:30-110mm H:5-55mm |
Total power |
3.5kw 50Hz AC220V |
Dimension(L*W*H) |
1800*1000*1500mm(L*W*H) |
Weight |
850kg |
