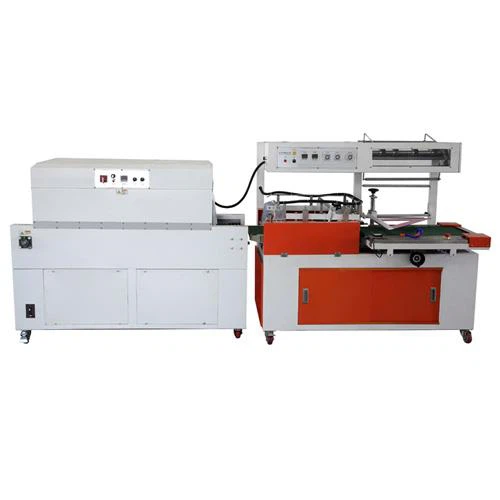

The L bar sealer shrink packing machine is a highly automated equipment, which is widely used in medicine, food and beverage, household chemicals and other industries. The L bar sealer shrink packing machine is stable, reliable, long-lived, and low-noise. It can greatly reduce the material and labor costs of the medium-box packaging, which has important economic significance.
This L bar sealer shrink packing machine is suitable for shrink pack single or multiple medicine, foodstuff, cosmetic, chemical, auto parts and so on. Packing speed can reach up to 30 pcs/min. L bar sealer shrink packing machine can finish all actions automatically such as covering with film, sealing, shrinking. The bag length is controlled by photoelectric stepping motor; shrink speed is controlled by stepless . All appliances are famous brands and make sure the machine run stably. L bar sealer shrink packing machine can be used separately or in line with automatic cartoning machine and case filling machine. It is suit for POF and PVC packaging material.
|
Model |
AB-400L |
|
Packing material |
POF film |
|
Packing material size |
0.012~0.025 * 200~530 mm(thickness*width) |
|
Packing material roll diameter |
Max.250 mm |
|
Power supply |
3 phase, 380V, 50/60HZ |
|
Total power |
11.5KW |
|
Air pressure |
0.5Mpa |
|
Capacity |
20~35 pcs/min |
|
Max. Packing size |
410*320*125mm,W+H<430mm（L*W*H） |
|
Shrink speed |
0~10 m/min |
|
Overall dimension |
2900*850*1600mm（L*W*H） |
|
Machine weight |
400kg |
|
Machine main material |
carbon steel spray treatment |
