Sugar Stick Packing Machine

It is applicable for packing foodstuff, medicine, chemical industry, seed, daily chemical industry and the loosing non-sticking granule. such as medical infusion, tea leaves, vegetable seed, flavouring, coffee, washing powder, condiment, drier, sugar, install coffee. silicagel. etc.

Related file download

Product Description

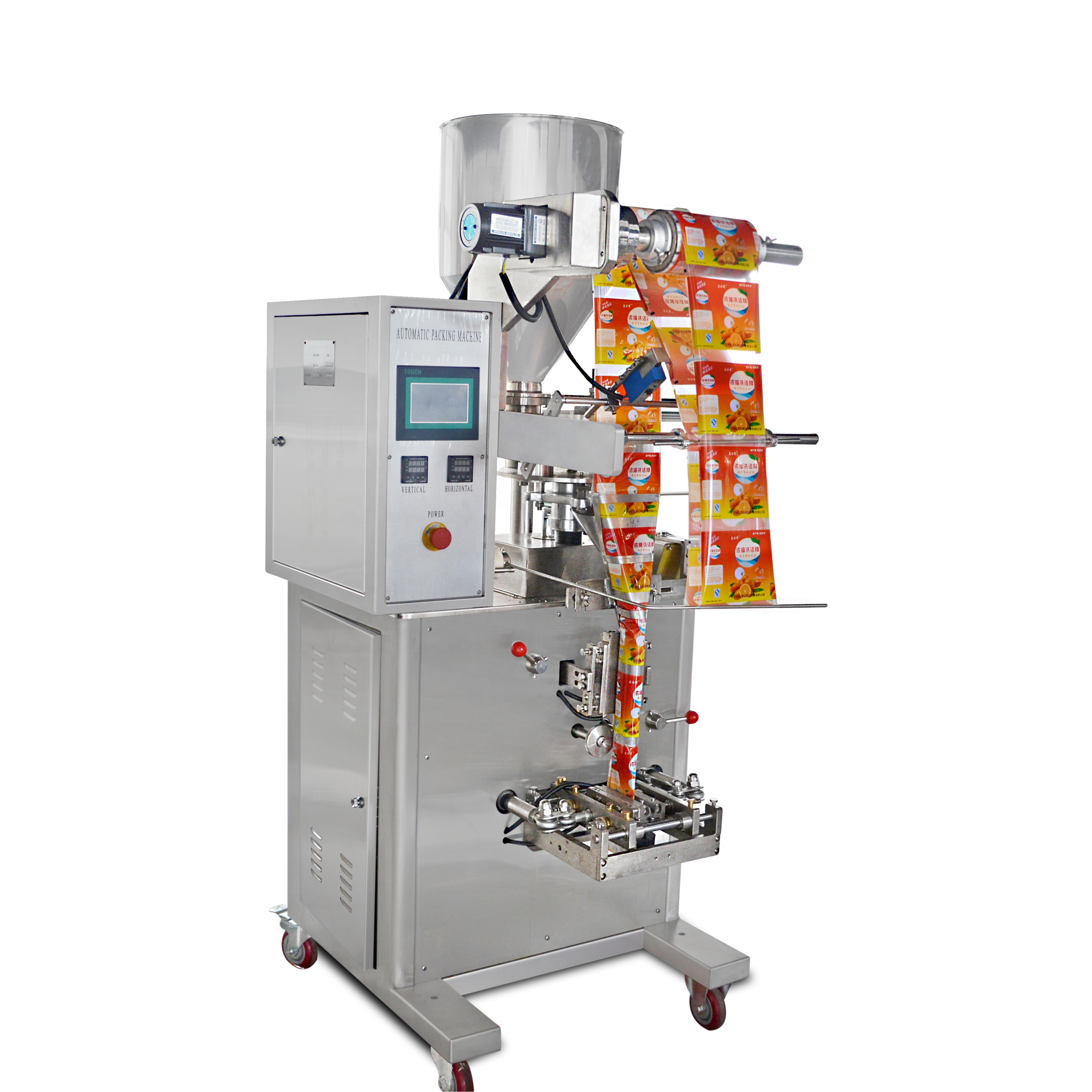

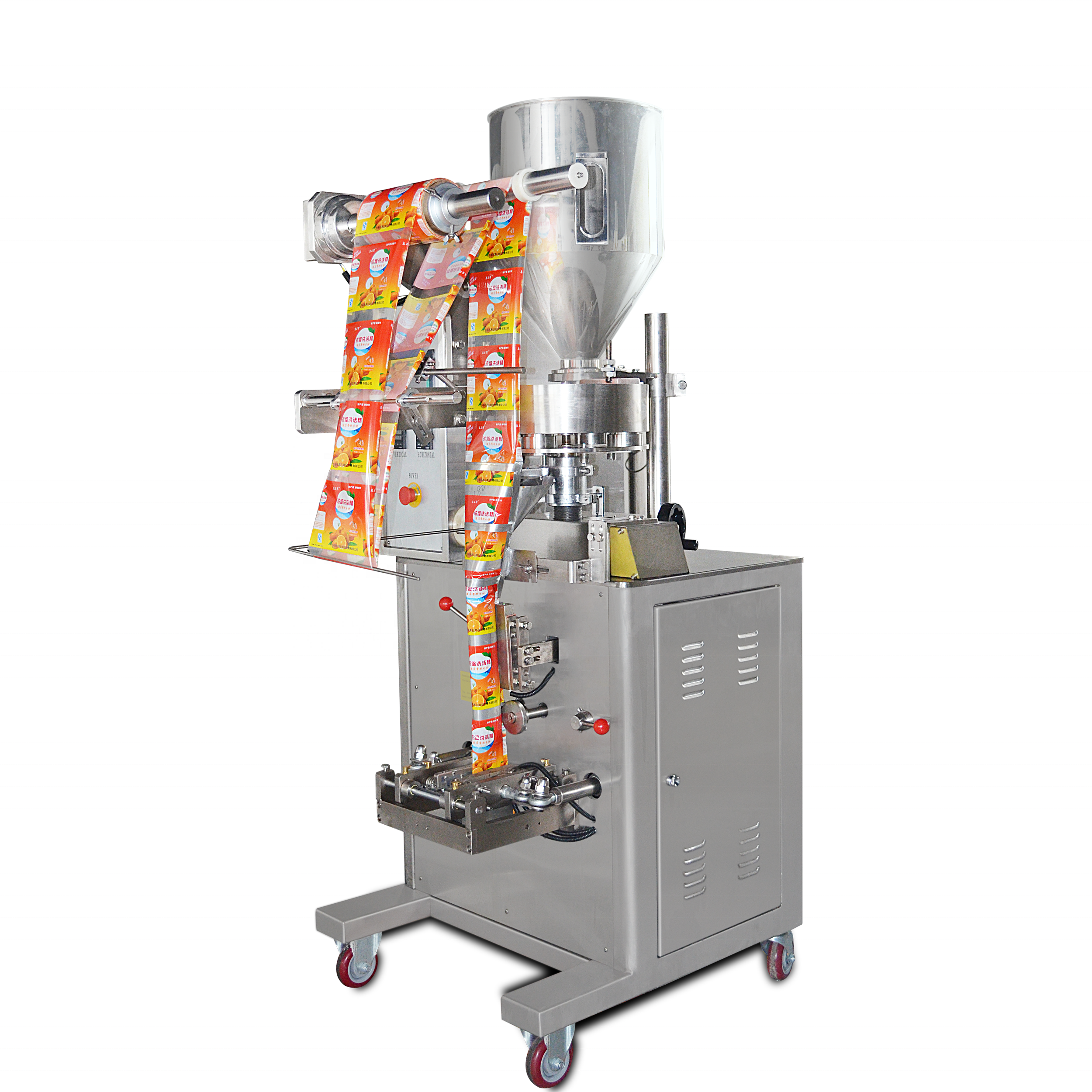

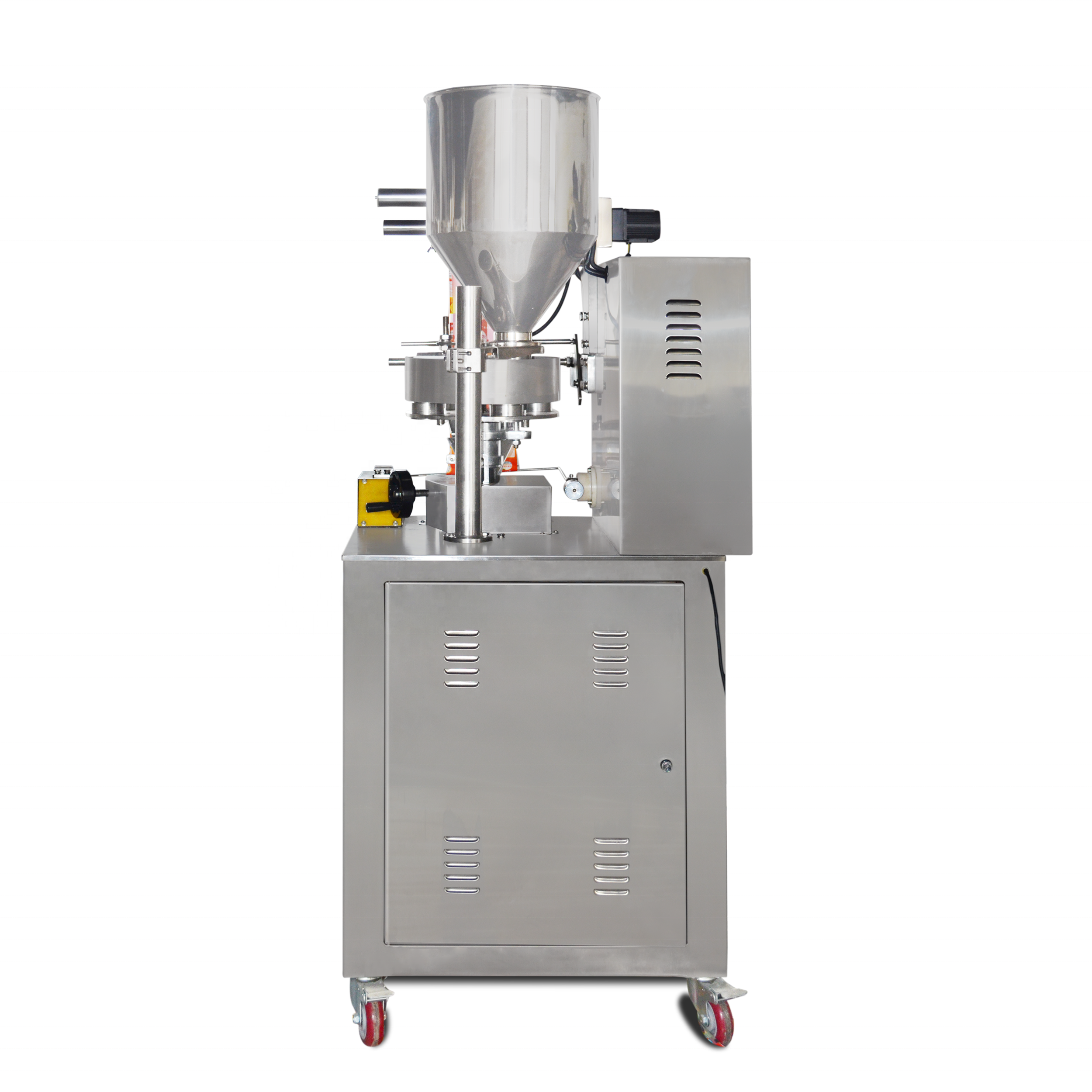

Sugar Stick Packing Machine


Description Of Sugar Stick Packing Machine

Sugar stick packing machine is a machine for quickly packaging sugar stick in batches.This sugar stick packing machine can automatically complete the functions of bag making, metering, filling, sealing, slitting, counting, hot pressing batch number and so on. This machine uses PLC control system, which has accurate measurement, simple operation and convenient adjustment. With fault alarm function, the fault is automatically displayed on the operation interface for easy maintenance. It adopts intelligent cursor positioning, with automatic photoelectric tracking and rectification function. Therefore, the sugar stick packing machine has the advantages of accurate cutting position, stable performance and convenient adjustment.


Application Of Sugar Stick Packing Machine

This sugar stick packing machine is applicable for packing foodstuff, medicine, chemical industry, seed, daily chemical industry and the loosing non-sticking granule. Such as medical infusion, tea leaves, vegetable seed, flavouring, coffee, washing powder, condiment, drier, sugar, install coffee, etc. The quantity of the product can be customized according to client's requirement.This sugar stick packing machine is suitable for packaging all kinds of regular objects such as biscuits, rice tongs, snow cakes, egg yolk pie, chocolate, bread, instant noodles, moon cakes, medicines, daily necessities, industrial parts, cartons or trays.


Features Of Sugar Stick Packing Machine

1. This granule packing machine process: Volumetric doser - forming bag--—sealing, all the work automatically.

2. Date coder is available and other options per customer request.

3. Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.


Technical Parameters Of Sugar Stick Packing Machine

model

AB-K100

AB-K300

bag-making length

40-160mm

50-260mm

bag-making width

25-120mm

70-190mm

packing film width

60-240mm

160-380mm

packing capacity

5-100ml

100-1000ml

packing speed

40-80bags/min

40-70bags/min

power

2.4kw

2.6kw

overall dimension

690*1010*1750mm

900*1120*2360mm

weight

300kg

480kg


Other big machine is available,please contact us for more information.


100g-sachet-rice-grain-beans-cup-filling (1)

100g-sachet-rice-grain-beans-cup-filling (2)


HTB17U1zaOjrK1RjSspl760HmVXak
