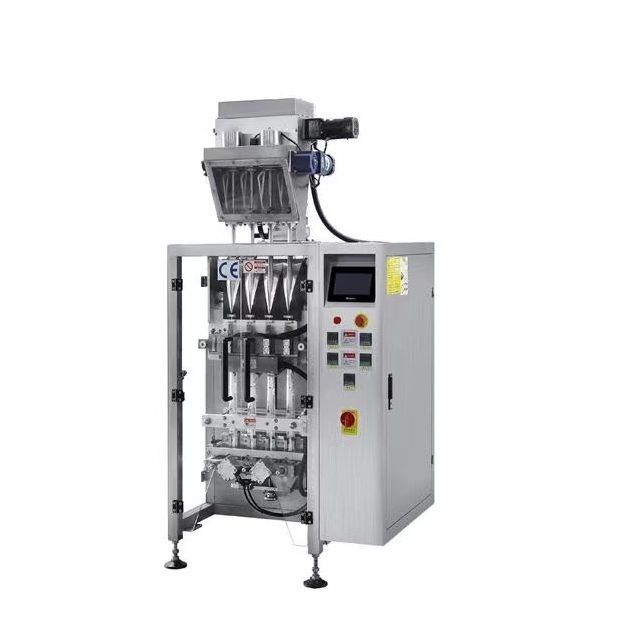

The Automatic Coffee Packing Machine is a multi-channel machine, which can produce multi-channel bags at the same time. It has the functions of automatic film separation and positioning, liquid metering and filling, multi-channel bag making, filling and sealing, slitting, sensor tracking and counting. With the micro-computer control system,the bag packaging machine can adjust the heating temperature, set the bag length and run the film automatically. Moreover, it is equipped with a high-precision photocell sensor, which can automatically track the eye mark printed on the film and precisely cut each bag.
The Automatic Coffee Packing Machine is suitable for many kinds of powder products, such as coffee powder, milk powder, spice powder, seasoning powder, etc. With the separate PID temperature controller, this machine is suitable for various packing materials. Such as aluminium film, paper film, PE film, water-soluble film and composite film.
|
Type |
AB-420-4K |
|
Bag length |
30-140mm(L) |
|
Bag width |
10-50mm(W) |
|
Max width of roll film |
440mm |
|
Packing speed |
30-50bags/line/min |
|
Measuring range |
5-30grams |
|
Air consumption |
0.65mpa |
|
Gas consumption |
0.2 m3 / min 6kg |
|
Power voltage |
220VAC/50Hz |
|
Power |
2.0KW |
|
Dimension |
(L)1100mm*(W)990mm*(H)2100mm |
|
Deadwight of machine |
400kg |
1. The packaging speed and bag length can be steplessly adjusted within the rated range without changing parts.
The bag length adjustment is simple and convenient, the bag length is accurate, and the operation is stable and reliable.
2. The heat sealing temperature can be set in advance, and the temperature can be automatically controlled to ensure a good heat balance. It is suitable for a variety of packaging materials to ensure a tight seal at the bag mouth, flat and beautiful.
3. Automatically print the batch number or production date of the packaged product.
4. Cut an easy-to-tear opening on each bag of packaged products, which is convenient for consumers to use.
5. All parts in contact with the materials to be packaged are made of stainless steel or non-toxic materials, which meet the hygiene standards of the food industry and the pharmaceutical industry.
6. Press the button when packing powder materials, the operation can be completed automatically, with fast running speed and high efficiency.
