Automatic Filling And Sealing Machine

Automatic Filling And Sealing Machine is suitable for automatic packaging of various kinds of powder: milk,coffee, chili powder, spices, sugar, soap powder, curry powder,washing powder etc.

Related file download

Product Description

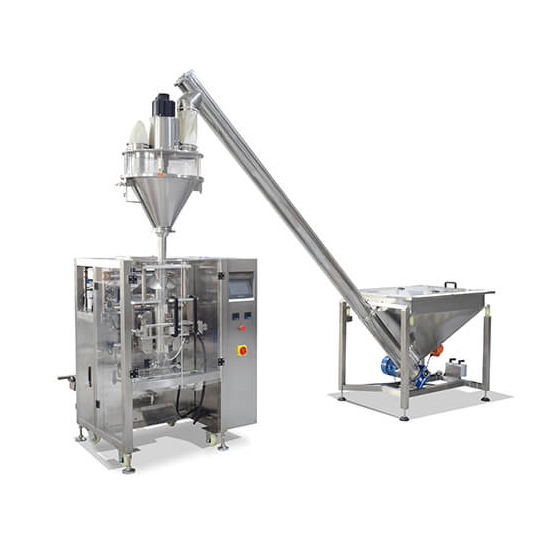

Automatic Filling And Sealing Machine


Product Description Of Automatic Filling And Sealing Machine

This Automatic Filling And Sealing Machine can realize bag making, filling, sealing, cutting, counting, batch hot pressing and other functions. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. The machine uses the screw pole putting material, servo-code and the microcomputer technology control is the main technology feature. Equiped with PLC control system, the operation is stable and efficient with high efficiency, high quality, low consumption and fault.

It is characterized by synchronous code control, sensitive movement, low noise, excellent performance, reliable measurement, fast speed, high precision, and it can display the measurement counter. This machine is a full automatic production line with such processes as automatic cup-loading and filling. The multi-purpose Automatic Filling And Sealing Machine is suitable for automatic packaging of various kinds of powder: milk,coffee, chili powder, spices, sugar, soap powder, curry powder, washing powder etc.


Specifications Of Automatic Filling And Sealing Machine

Model

AB420-P

AB520-P

Film Thickness

0.04-0.08mm

0.04-0.12mm

Bag Length

80-300mm

80-350mm

Bag Width

60-200mm

100-250mm

Film Roll Diameter

Max.320mm

Max.320mm

Pakaging Rate

5-60bag/min

5-60bag/min

Film Width

Max.420mm

Max.520mm

Measurement Range

150-1500ml

5-2000ml


Other big machine is available,please contact us for more information.


FAQ

What are the precautions for using the sealing machine?

1. It is not suitable for metal containers and metal caps, let alone press the start button on the metal table, otherwise the machine will be damaged.

2. Before turning on the power, the induction aviation plug must be inserted and the screws must be tightened.

3. Use a single-phase three-wire power cord. For the safety of the operator, a single-phase three-wire power socket must be used. The ground of the workplace must be dry to maintain insulation.

4. Equipped with an automatic protection function for overheating. When the temperature inside the machine is overheated, the buzzer inside the machine will beep for a long time and the yellow indicator light of "Abnormal Protection (PRO MD)" shall be on. At this time, the main power switch should be turned off, and the cooling buzzer in standby After stopping, continue to work.

5. During the working process, you should always touch the surface of the induction head to check whether it is overheated. If you find that your hands are hot, stop heating and wait for it to cool down before working (cooling does not need to turn off the power). When the "WARMUP" green indicator light is off, please Do not press the start button to avoid false triggering. After the machine is finished, please turn off the power switch on the panel.

6. Equipped with a fuse of 5A, it cannot be replaced by a fuse greater than 5A.

7. There is high voltage inside, and the bottom plate is live. It is strictly prohibited to repair it privately to avoid personal electric shock.

8. If you find any exposed wires before use, you should stop using the machine, and use it after maintenance.

9. The equipment should not be impacted, pressed or damp during transportation, storage and use.
