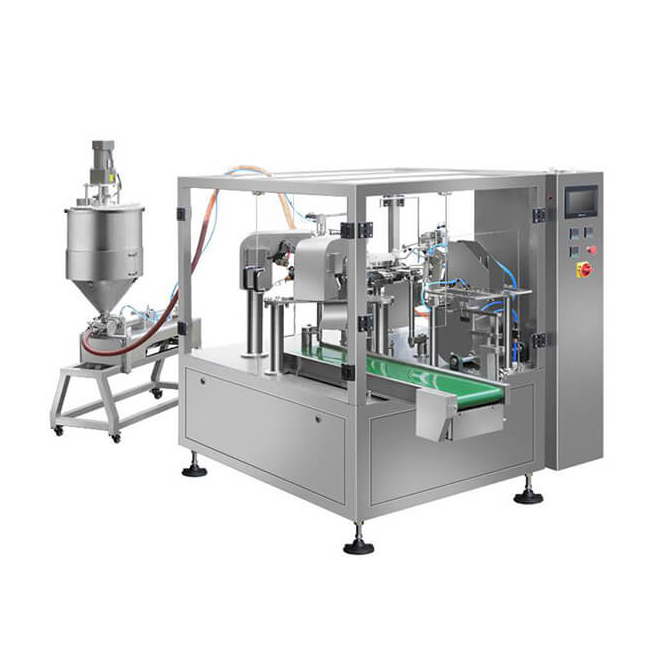

Suitable for All Kinds of Pre-Made Pouches, liquid packing , such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.
Wide range of pouches: All kinds of pre-made pouches such as flat and stand-up pouches (with/without zip)
Easy to operate: PLC and color panel, fault indication on the panel.
Easy to adjust: Only about 10 minutes to change different pouches.
Frequency control: Speed can be adjusted by frequency conversion within the range.
Water proof design: The machine surface can be washed down, so easy cleaning and longer useful life.
No pouch/incorrect pouch opening-no fill-no seal, machine alarm.
Machine alarm and stop when the inadequate air pressure.
Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
Hygienic construction, the product contact parts are adopted sus304 stainless steel.
Imported engineering plastic bearings, no need to oil, no contamination.
Oil-free vacuum pump, avoid the pollution of the production environmental.
|
Model |
DY-200-6 |
|
Packing material |
3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
|
size |
W:100-210mm |
|
Filling range |
20-1500g |
|
Packing speed |
420-55bags/min（speed is determined by the product filling quantity） |
|
Average precision |
≤ ±1% |
|
Total power |
2.5KW |
|
Dimensions |
1530*1350*1450mm |
|
Work flow |
giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product |
|
Main standard parts |
1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
Other big machine is available,please contact us for more information.
1. What are the operating steps of the sealing machine?
Turn on the power, turn on the power switch, the indicator light is on, set the thermostat to a predetermined temperature, and the green heating indicator light is on. When the upper heating plate reaches the predetermined temperature, the red constant temperature indicator light is on (when the sealing machine is working, the electric heating device is constantly alternated in the heating and heat preservation state, so the green and red indicator lights are also displayed alternately, which is a normal phenomenon).
Put the rubber cup into the lower mold slide, push the lower mold slide to a certain position by hand (if it is an automatic sealing machine or automatic sealing machine, after putting the plastic cup, the lower mold slide will automatically enter), and press it down The handle of the sealing machine reaches the maximum stroke, keep the pressure for 1 to 2 seconds, then slowly raise the handle and push it to its original position.
Pull out the lower mold slide, take out the plastic cup, put in the end-sealing plastic cup, and perform another cycle.
2. How to clean and maintain the sealing machine?
Regularly clean the surface of the machine table, the bottom plate and the lower mold slide plate, groove, the upper mold inner pressure plate and the positioning rod (note: the power must be turned off and the normal temperature must be restored).
Grease is added regularly to the transmission parts of the lower die slide plate, pressing rod bearing, eccentric wheel, guide post, and guide rail to ensure the performance of the machine.
How to clean the tooth knife: first plug the two drain holes of the lower mold with a cotton ball, pour boiling water into the groove of the lower mold, fill it up, and then push in.
The lower mold slide plate is in place, the upper mold is pressed down to the lowest point, and the toothed knife is soaked for a few minutes until it is cleaned. Repeat several times.
