Automatic Vertical Form Fill Seal Machine

It's suitable to use in packaging the high accuracy and easy fragile material,such as: puffy food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardwares, medicine, etc.

Related file download

Product Description

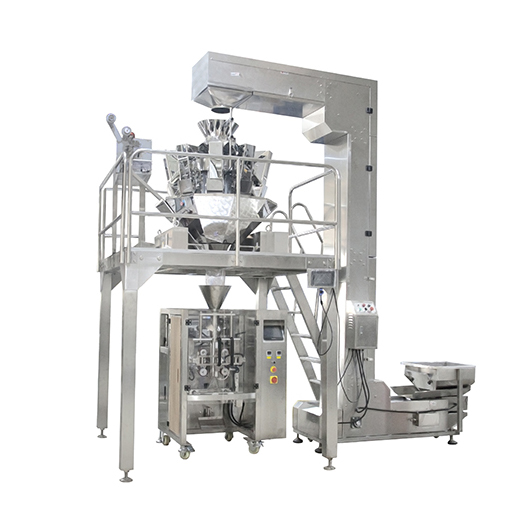

Automatic Vertical Form Fill Seal Machine


Product Description Of Automatic Vertical Form Fill Seal Machine

This Automatic Vertical Form Fill Seal Machine is the first choice of food packaging industry to improve the production efficiency and reduce labor intensity. With the high precision servo film feeding system and PLC program control, the operation is simpler and more stable. It has low consumption of the packing material, which is economical and environmentally friendly. The metering section can be quickly adjusted to change the package weight at any time.

The machine adopts the combination of gas and electric devices to realize the full automation of the production process, which is highly efficient, reliable and hygienic. It completes the whole procedure of filling, measuring, bagging, date printing, charging, product out-putting automatically. This Automatic Vertical Form Fill Seal Machine is suitable to for packaging the high accuracy and easy fragile material, such as puffy food, crispy rice, jelly, candy, pistachio, apple slices and so on.

Automatic vertical form fill seal machine , as its name implies, is a machine that can be both filling and sealing. There are different models for different industries. The automatic vertical form fill seal machine can also be widely used in product packaging in the pharmaceutical, daily chemical, food, chemical and other industries. Such as: ointment, adhesive, silica gel, AB glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste-like materials filling and sealing.


Specifications Of Automatic Vertical Form Fill Seal Machine

Type

AB720W

AB520W

AB420W

Film width

Max.720MM

Max.520MM

Max.420MM

Bag length

180-350MM

80-350MM

80-300MM

Bag width

100-350MM

100-250MM

60-200MM

Film thickness

0.04-0.12MM

0.04-0.12MM

0.04-0.08 MM

Packaging rate

10-45Bag/Min

10-55Bag/Min

10-55Bag/Min

Range of measurement

4000ml

2000ml

150-1500ml

Machine size

1780*1350*2050MM

1488*1080*1490MM

1217*1015*1343MM

Machine quality

750KG

680KG

650KG

Power

220V 3KW

220V 50/60Hz 3KW

220V 50/60Hz 2KW
